바이오템은 언제나 고객과 가까운 곳에 있습니다.

AR

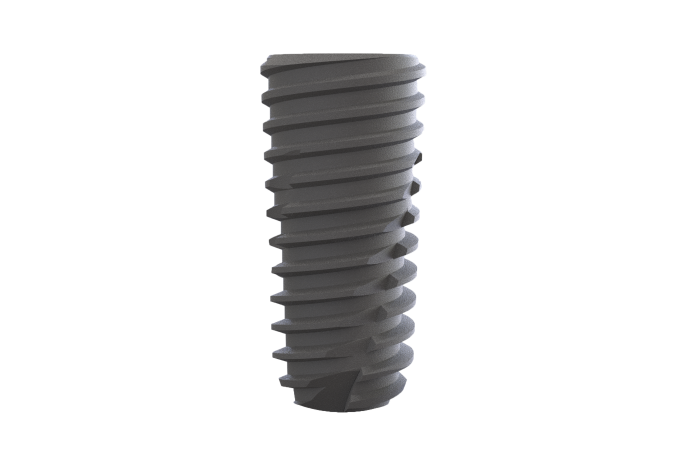

AR IMPLANT
Implant

AR IMPLANT

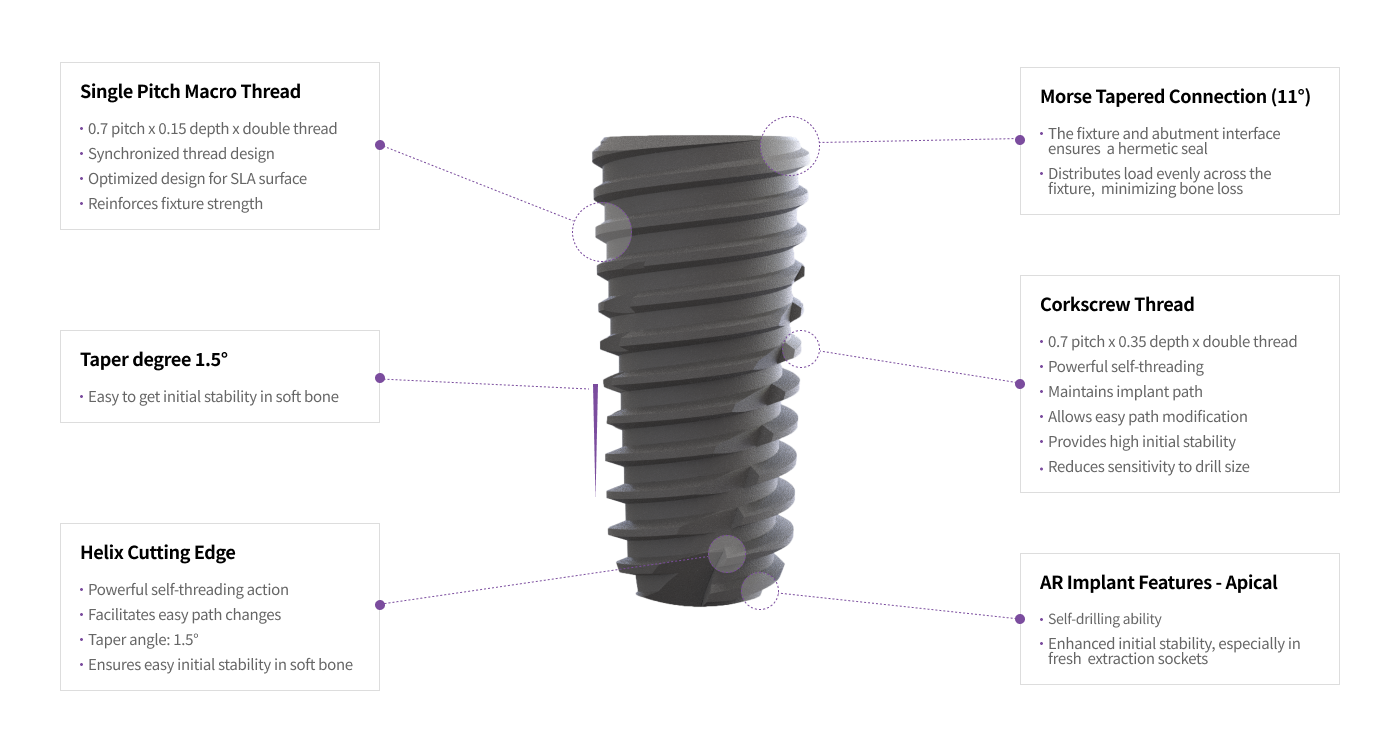

Internal hex의 connection 구조를 가진 submerged type의 임플란트

AR Submerged Implant System

AR Submerged Implant System

FLOW CHART

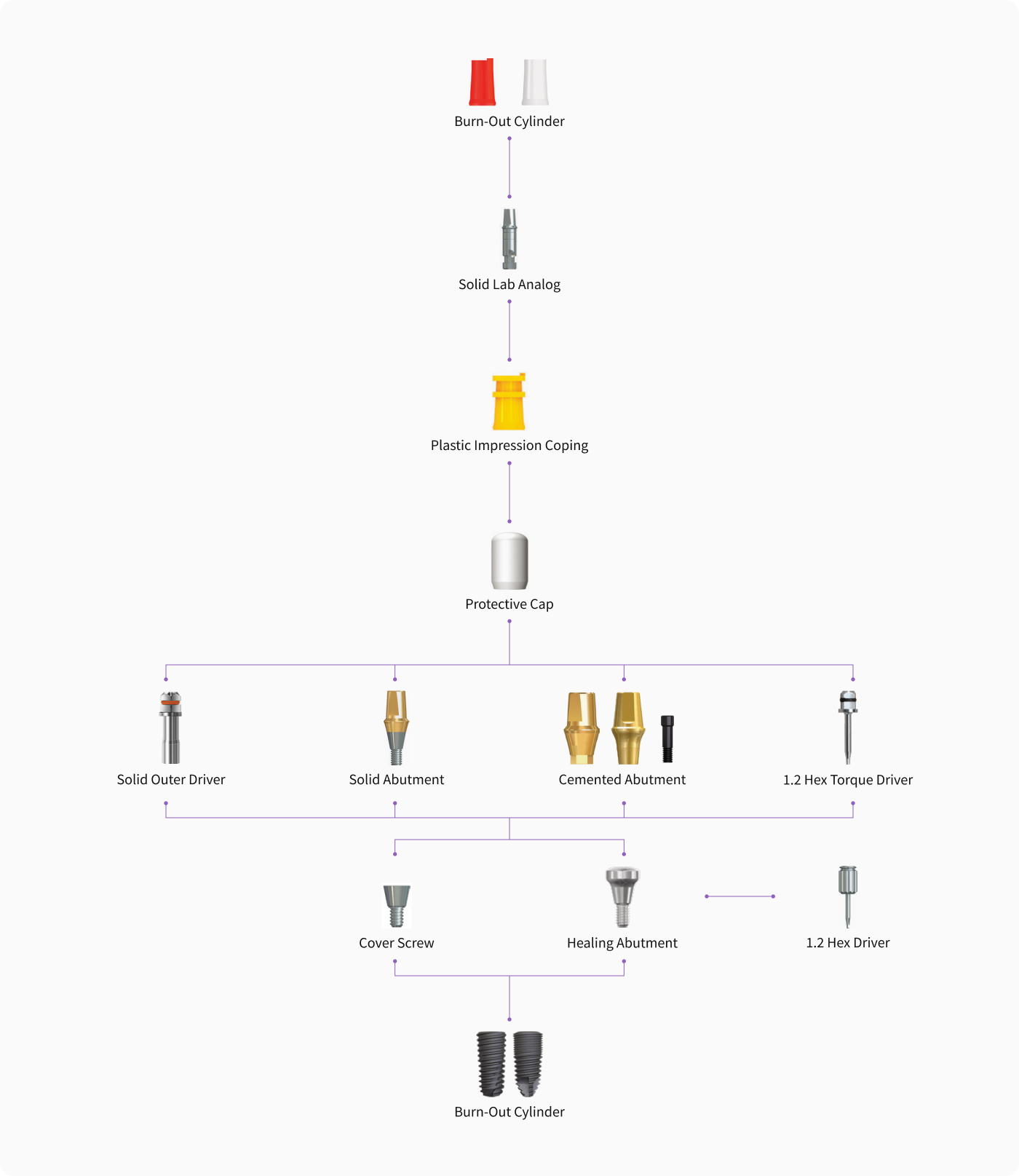

Solid / Cemented Abutment Level Impression
Solid / Cemented Abutment Level Impression

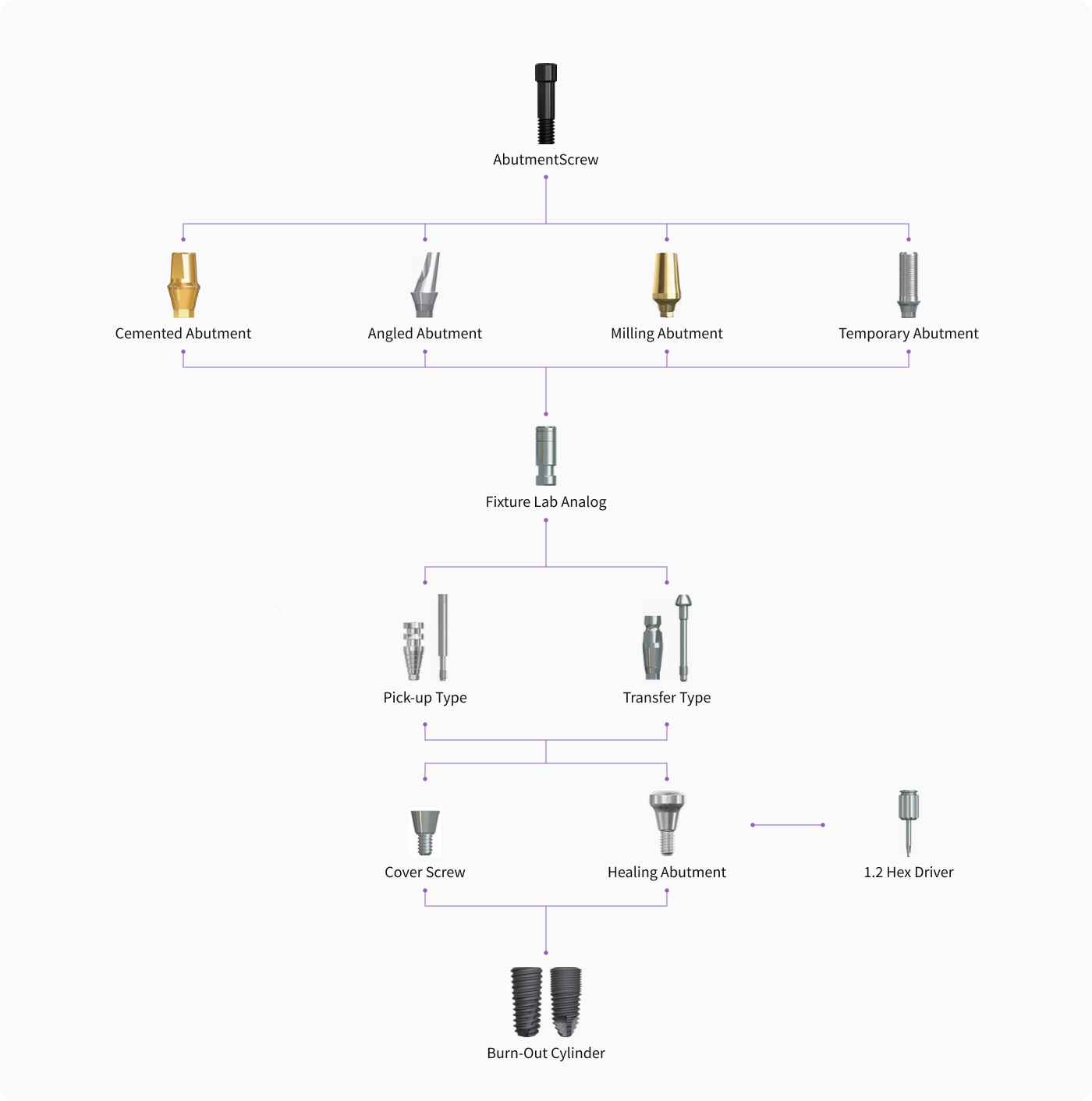

Cemented/ Angled / Milling / Temporary Fixture Level Impression
Cemented/ Angled / Milling / Temporary Fixture Level Impression

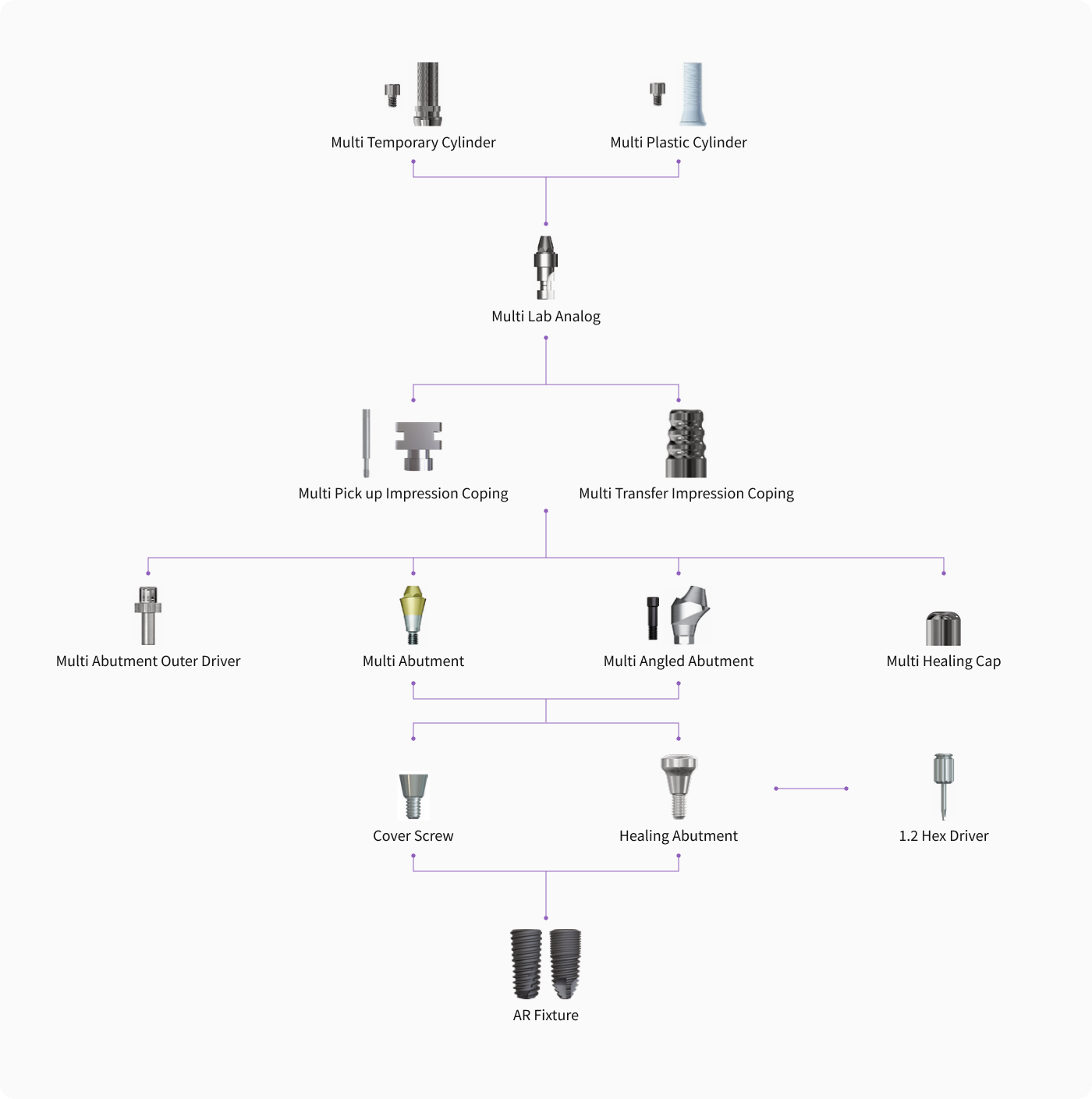

Multi / Multi Angled Abutment Level Impression
Multi / Multi Angled Abutment Level Impression

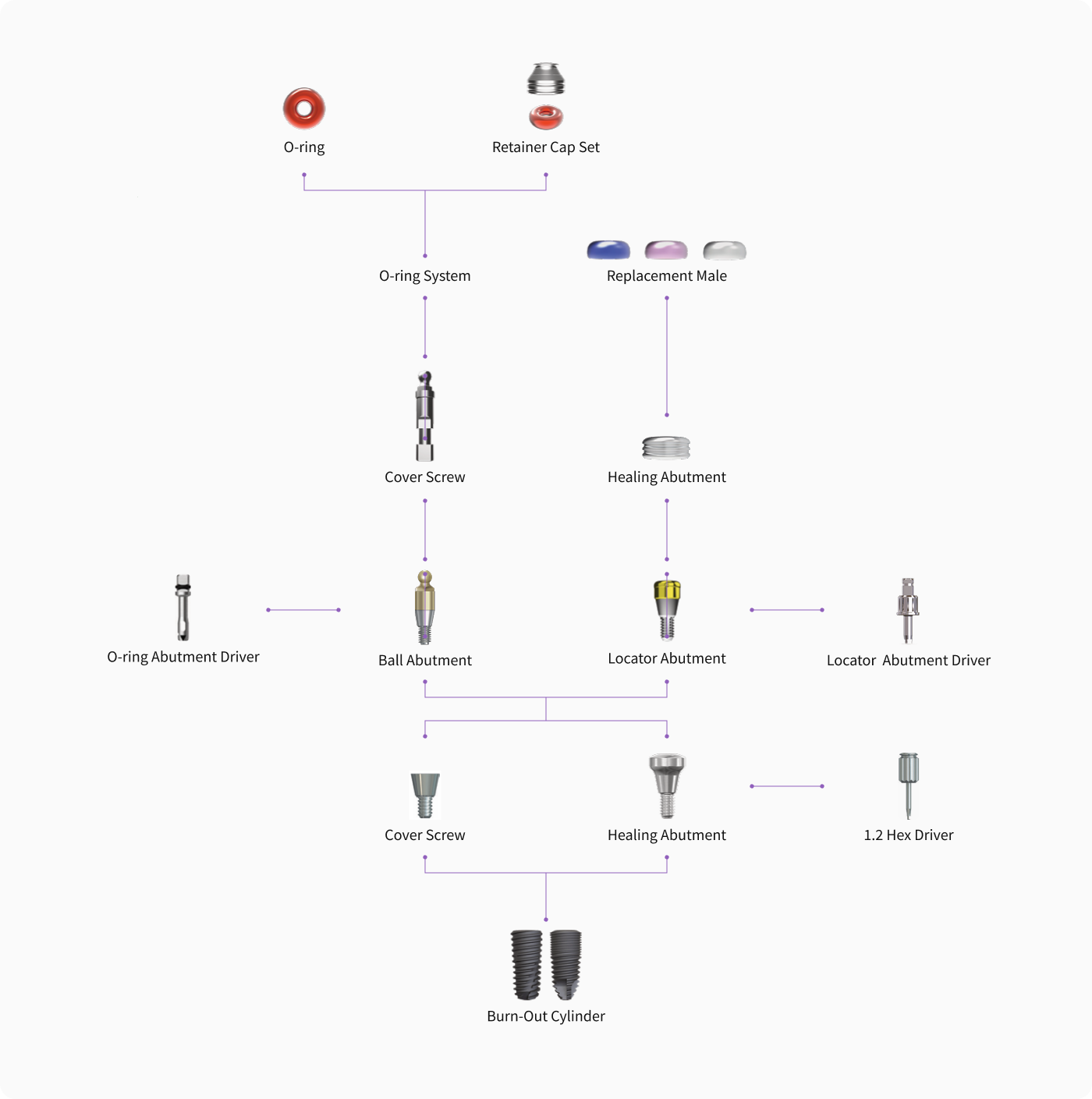

Locator / O-ring Overdenture
Locator / O-ring Overdenture

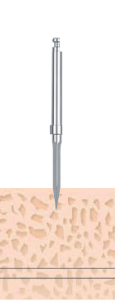

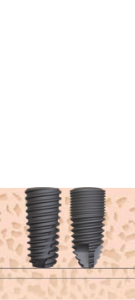

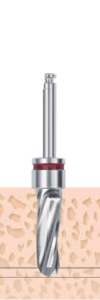

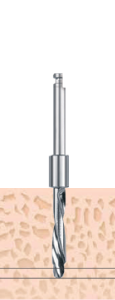

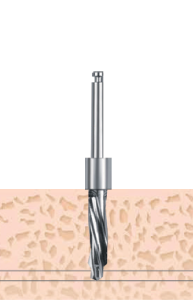

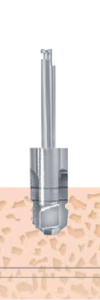

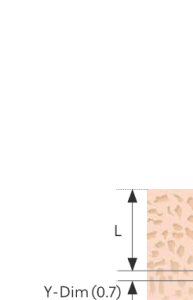

AR DRILLING SEQUENCE

FXAR 3.4

Drilling Sequence

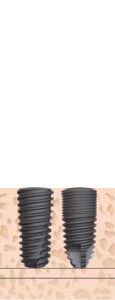

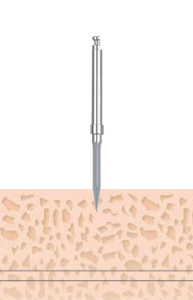

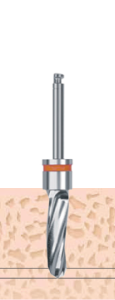

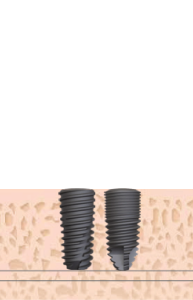

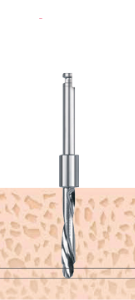

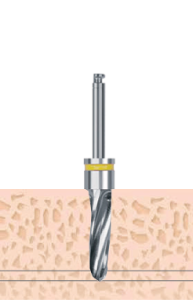

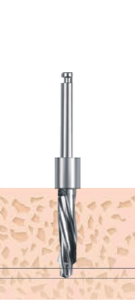

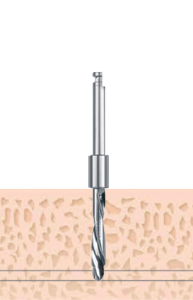

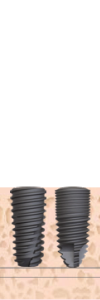

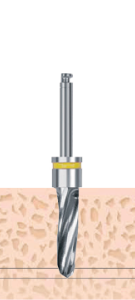

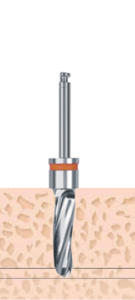

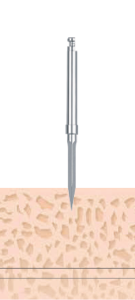

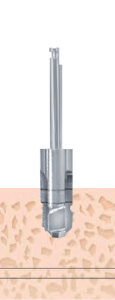

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
Soft (Half) Implant
Placement
Normal
Hard (Half)
ASTFA 3.5 / FXAR 3.7

Drilling Sequence

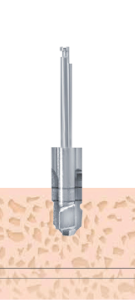

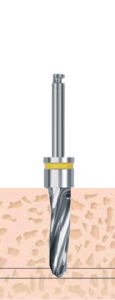

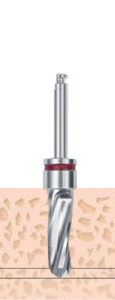

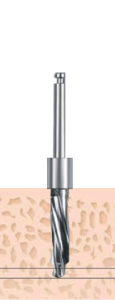

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.5/3.7 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
Soft Implant
Placement
Normal
Hard
ASTFA 4.0 / FXAR 4.0

Drilling Sequence

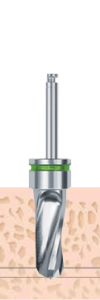

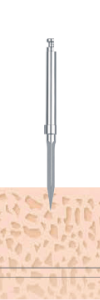

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.0
Cortical Drill		 Ø4.0 Fixture

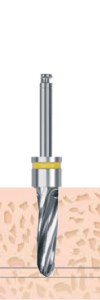

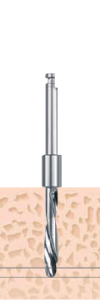

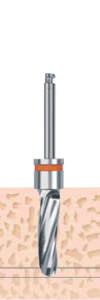

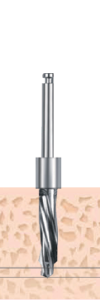

Bone Density Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
Soft Implant
Placement
Normal
Hard
ASTFA 4.5 / FXAR 4.5

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Dril F4.5
Cortical Drill		 Ø4.5 Fixture
Bone Density Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture Ø3.4 Fixture
Soft Implant
Placement
Normal
Hard
ASTFA 5.0 / FXAR 5.0

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill F5.0
Cortical Drill		 Ø5.0 Fixture
Bone Density Point Drill Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture Ø3.4 Fixture
Soft Implant
Placement
Normal
Hard
ASTFA 6.0 / FXAR 6.0

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill F6.0 Drill F6.0
Cortical Drill		 Ø6.0 Fixture
Bone Density Bone Density Point Drill Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture Ø3.4 Fixture
Soft Implant
Placement
Normal
Hard

Product

AR FIXTURE
NON-MICRO THREAD AR FIXTURE (SLA)
NON-MICRO THREAD AR FIXTURE (SLA)
NON-MICRO THREAD AR FIXTURE (SLA)
# AR FIXTURE

NON-MICRO THREAD AR FIXTURE (SLA)

  • No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture
  • Surface : SLA
  • Recommended placement torque : Less than 30Ncm
  • Tapered angle for maxillary


Tapered AR Fixture | SLA
Tapered AR Fixture | SLA
Tapered AR Fixture | SLA
# AR FIXTURE

Tapered AR Fixture | SLA

  • Ø 4.0, Ø 5.0 fixture : Expanded Platform (Ø 3.4 fixture is excluded)
  • No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture
  • Surface : SLA
  • Recommended placement torque : Less than 30Ncm

1652769908480874 (1).png

AR ABUTMENT
COVER SCREW
COVER SCREW
COVER SCREW
# AR ABUTMENT

COVER SCREW

  • Using a 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


HEALING ABUTMENT
HEALING ABUTMENT
HEALING ABUTMENT
# AR ABUTMENT

HEALING ABUTMENT

  • Using a 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


1652686255131427 (1).png

SOLID ABUTMENT
SOLID ABUTMENT
SOLID ABUTMENT
# AR ABUTMENT

SOLID ABUTMENT

  • An abutment combined with a set screw, for a bridge prosthesis
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect cap is optional


PROTECTIVE CAP
PROTECTIVE CAP
PROTECTIVE CAP
# AR ABUTMENT

PROTECTIVE CAP

1652686402811284 (1).png

Cemented Abutment (Hex)
Cemented Abutment (Hex)
Cemented Abutment (Hex)
# AR ABUTMENT

Cemented Abutment (Hex)

  • An abutment for a single prosthesis.
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect cap is optional


Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
# AR ABUTMENT

Cemented Abutment (Non-Hex)

  • An abutment combined with a set screw, for a bridge prosthesis
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect cap is optional


Milling Abutment (Hex)
Milling Abutment (Hex)
Milling Abutment (Hex)
# AR ABUTMENT

Milling Abutment (Hex)

  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Temporary Abutment (Hex)
Temporary Abutment (Hex)
Temporary Abutment (Hex)
# AR ABUTMENT

Temporary Abutment (Hex)

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Temporary Abutment (Non-Hex)
Temporary Abutment (Non-Hex)
Temporary Abutment (Non-Hex)
# AR ABUTMENT

Temporary Abutment (Non-Hex)

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment (Hex) A-Type
Angled Abutment (Hex) A-Type
Angled Abutment (Hex) A-Type
# AR ABUTMENT

Angled Abutment (Hex) A-Type

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

1652694093666080 (1).png

Angled Abutment (Hex) B-Type
Angled Abutment (Hex) B-Type
Angled Abutment (Hex) B-Type
# AR ABUTMENT

Angled Abutment (Hex) B-Type

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment (Non-Hex)
Angled Abutment (Non-Hex)
Angled Abutment (Non-Hex)
# AR ABUTMENT

Angled Abutment (Non-Hex)

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Ti-base Abutment
Ti-base Abutment
Ti-base Abutment
# AR ABUTMENT

Ti-base Abutment


AR IMPRESSION COPING
Transfer Impression Coping (Hex)
Transfer Impression Coping (Hex)
Transfer Impression Coping (Hex)
# AR IMPRESSION COPING

Transfer Impression Coping (Hex)

  • A Transfer type with utilizing a close tray
  • Packing unit : Impression coping body+Guide Pin
  • Hex Type


Transfer Impression Coping (Non-Hex)
Transfer Impression Coping (Non-Hex)
Transfer Impression Coping (Non-Hex)
# AR IMPRESSION COPING

Transfer Impression Coping (Non-Hex)

  • A Transfer type with utilizing a close tray
  • Packing unit : Impression coping body+Guide Pin
  • Non-Hex Type
Pick-up Impression Coping (Hex)
Pick-up Impression Coping (Hex)
Pick-up Impression Coping (Hex)
# AR IMPRESSION COPING

Pick-up Impression Coping (Hex)

  • A Pick-up type with utilizing a custom tray.
  • Increasing convenience with being composed of Short & Long

165269339457553 (1).png

Pick-up Impression Coping (Non-Hex)
Pick-up Impression Coping (Non-Hex)
Pick-up Impression Coping (Non-Hex)
# AR IMPRESSION COPING

Pick-up Impression Coping (Non-Hex)

  • A Pick-up type with utilizing a custom tray.
  • Increasing convenience with being composed of Short & Long


Plastic Impression Coping
Plastic Impression Coping
Plastic Impression Coping
# AR IMPRESSION COPING

Plastic Impression Coping


Plastic Coping
Plastic Coping
Plastic Coping
# AR IMPRESSION COPING

Plastic Coping

  • A replication of the master model and manufacture a prosthesis with joining a abutment


AR LAB ANALOG
Fixture Lab Analog
Fixture Lab Analog
Fixture Lab Analog
# AR LAB ANALOG

Fixture Lab Analog

  • A replication of the master model and manufacture a prosthesis with joining an abutment


Solid Lab Analog
Solid Lab Analog
Solid Lab Analog
# AR LAB ANALOG

Solid Lab Analog

  • Integrated type of abutment & analog


AR MULTI ABUTMENT
Multi Angled Abutment (All-on-4)
Multi Angled Abutment (All-on-4)
Multi Angled Abutment (All-on-4)
# AR MULTI ABUTMENT

Multi Angled Abutment (All-on-4)

  • Used in implant path compensation in screw retained multiple case
  • Up to 60° path compensation (two implant standard)
  • Recommended tightening torque : 20Ncm(Narrow), 30Ncm(regular)

1652687122379593 (1).png

Multi Abutment
Multi Abutment
Multi Abutment
# AR MULTI ABUTMENT

Multi Abutment

  • Uses specialized outer driver (AMOD)
  • Used in screw type prosthetics in multiple cases
  • Recommended tightening torque: 30Ncm

1652687176597164 (1).png

AR MULTI COMPONENT
Multi Temporary Cylinder
Multi Temporary Cylinder
Multi Temporary Cylinder
# AR MULTI COMPONENT

Multi Temporary Cylinder

  • Used in producing temporary prosthetic with multi abutment (Material: Ti Gr-3)
  • Structure allows for easy customization and minimization of indication constraints
  • 1.2 hex driver
  • Recommended tightening torque : 20Ncm
  • Packing unit : cylinder + Ti screw


Multi Transfer Impression Coping
Multi Transfer Impression Coping
Multi Transfer Impression Coping
# AR MULTI COMPONENT

Multi Transfer Impression Coping

  • Takes impression using closed tray


Multi Lab Analog
Multi Lab Analog
Multi Lab Analog
# AR MULTI COMPONENT

Multi Lab Analog

  • Achieves Multi abutment of the oral cavity on a working model


Multi Healing Cap
Multi Healing Cap
Multi Healing Cap
# AR MULTI COMPONENT

Multi Healing Cap

  • Used when protecting multi abutment in the oral cavity and minimizing foreign body sensation in patient
  • 1.2 hex driver
  • Recommended tightening torque : 20Ncm


Multi Plastic Cylinder
Multi Plastic Cylinder
Multi Plastic Cylinder
# AR MULTI COMPONENT

Multi Plastic Cylinder

  • Produces prosthetics by casting with dental-grade alloy (gold, non-precious metals)
  • Connection region’s precision is reduced compared to gold cylinder
  • 1.2 hex driver
  • Recommended tightening torque : 20Ncm
  • Packing unit : cylinder + Ti screw

1652687515655006 (1).png

Multi Abutment Outer Driver
Multi Abutment Outer Driver
Multi Abutment Outer Driver
# AR MULTI COMPONENT

Multi Abutment Outer Driver

  • Torque driver specialized for multi-abutments


LOCATOR ABUTMENT
Locator Abutment (Regular)
Locator Abutment (Regular)
Locator Abutment (Regular)
# LOCATOR ABUTMENT

Locator Abutment (Regular)

1652689063908164 (1).png

Locator Abutment (Narrow)
Locator Abutment (Narrow)
Locator Abutment (Narrow)
# LOCATOR ABUTMENT

Locator Abutment (Narrow)


AR ABUTMENT LOCATOR COMPONENT
Denture Cap
Denture Cap
Denture Cap
# AR ABUTMENT LOCATOR COMPONENT

Denture Cap

  • Packing unit : Metal Replacement Male


Denture Cap
Denture Cap
Denture Cap
# AR ABUTMENT LOCATOR COMPONENT

Denture Cap

  • Packing unit : Blue Replacement Male
  • Retention Force : about 10±5N

  1. 1652689280889429.png

Denture Cap
Denture Cap
Denture Cap
# AR ABUTMENT LOCATOR COMPONENT

Denture Cap

  • Packing unit : Pink Replacement Male
  • Retention Force : about 20±5N


Denture Cap
Denture Cap
Denture Cap
# AR ABUTMENT LOCATOR COMPONENT

Denture Cap

  • Packing unit : Clear Replacement Male
  • Retention Force : about 30±5N


AR BALL ABUTMENT & COMPONENT
Ball Abutment
Ball Abutment
Ball Abutment
# AR BALL ABUTMENT & COMPONENT

Ball Abutment


Retainer Cap Set
Retainer Cap Set
Retainer Cap Set
# AR BALL ABUTMENT & COMPONENT

Retainer Cap Set

  • Packing unit : Retainer cap + O-ring


O-ring
O-ring
O-ring
# AR BALL ABUTMENT & COMPONENT

O-ring

  • Packing unit : O-ring 1 piece


O-ring Lab Analog
O-ring Lab Analog
O-ring Lab Analog
# AR BALL ABUTMENT & COMPONENT

O-ring Lab Analog

  • Make Oral Ball abutments on the working model
  • Packing unit : Lab analog

1652689809986913 (1).png

O-ring Abutment Torque driver
O-ring Abutment Torque driver
O-ring Abutment Torque driver
# AR BALL ABUTMENT & COMPONENT

O-ring Abutment Torque driver
