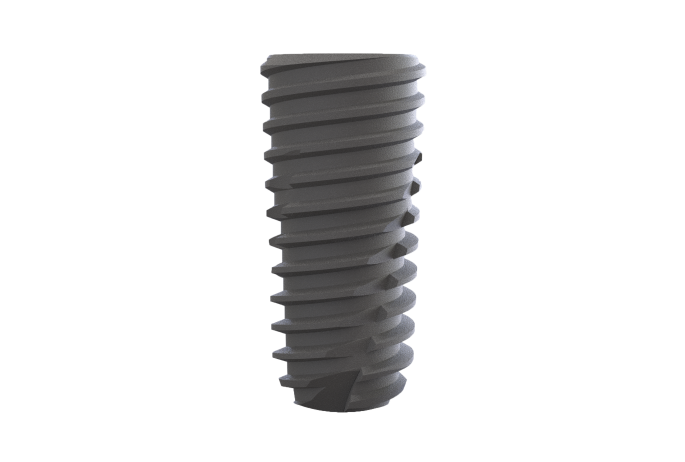

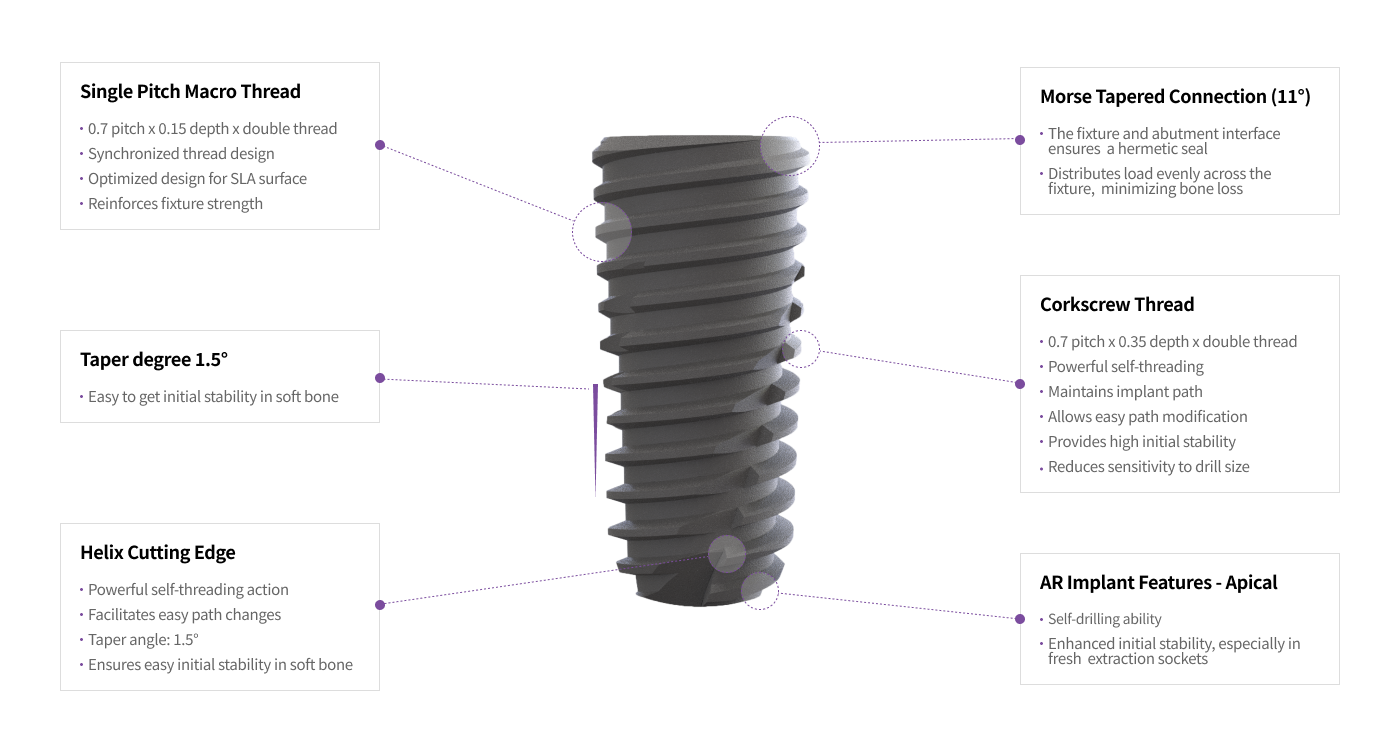

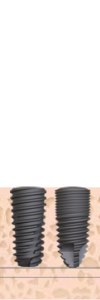

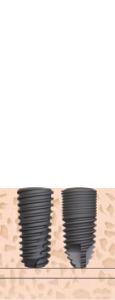

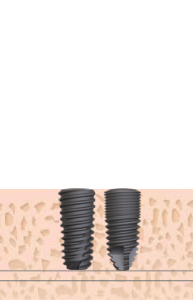

NON-MICRO THREAD AR FIXTURE (SLA)

• No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture
• Surface : SLA
• Recommended placement torque : Less than 30Ncm
• Tapered angle for maxillary

Tapered AR Fixture | SLA

• Ø 4.0, Ø 5.0 fixture : Expanded Platform (Ø 3.4 fixture is excluded)
• No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture
• Surface : SLA
• Recommended placement torque : Less than 30Ncm

COVER SCREW

• Using a 1.2 Hex Driver
• Fastening torque : 5~8Ncm

HEALING ABUTMENT

• Using a 1.2 Hex Driver
• Fastening torque : 5~8Ncm

SOLID ABUTMENT

• An abutment combined with a set screw, for a bridge prosthesis
• Using a 1.2 Hex Driver
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
• Protect cap is optional

PROTECTIVE CAP

Cemented Abutment (Hex)

• An abutment for a single prosthesis.
• Using a 1.2 Hex Driver
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
• Protect cap is optional

Cemented Abutment (Non-Hex)

• An abutment combined with a set screw, for a bridge prosthesis
• Using a 1.2 Hex Driver
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
• Protect cap is optional

Milling Abutment (Hex)

• Using a 1.2 Hex Driver
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Temporary Abutment (Hex)

• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Temporary Abutment (Non-Hex)

• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Angled Abutment (Hex) A-Type

• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Angled Abutment (Hex) B-Type

• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Angled Abutment (Non-Hex)

• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

Ti-base Abutment

Transfer Impression Coping (Hex)

• A Transfer type with utilizing a close tray
• Packing unit : Impression coping body+Guide Pin
• Hex Type

Transfer Impression Coping (Non-Hex)

• A Transfer type with utilizing a close tray
• Packing unit : Impression coping body+Guide Pin
• Non-Hex Type

Pick-up Impression Coping (Hex)

• A Pick-up type with utilizing a custom tray.
• Increasing convenience with being composed of Short & Long

Pick-up Impression Coping (Non-Hex)

• A Pick-up type with utilizing a custom tray.
• Increasing convenience with being composed of Short & Long

Plastic Impression Coping

Plastic Coping

• A replication of the master model and manufacture a prosthesis with joining a abutment

Fixture Lab Analog

• A replication of the master model and manufacture a prosthesis with joining an abutment

Solid Lab Analog

• Integrated type of abutment & analog

Multi Angled Abutment (All-on-4)

• Used in implant path compensation in screw retained multiple case
• Up to 60° path compensation (two implant standard)
• Recommended tightening torque : 20Ncm(Narrow), 30Ncm(regular)

Multi Abutment

• Uses specialized outer driver (AMOD)
• Used in screw type prosthetics in multiple cases
• Recommended tightening torque: 30Ncm

Multi Temporary Cylinder

• Used in producing temporary prosthetic with multi abutment (Material: Ti Gr-3)
• Structure allows for easy customization and minimization of indication constraints
• 1.2 hex driver
• Recommended tightening torque : 20Ncm
• Packing unit : cylinder + Ti screw

Multi Transfer Impression Coping

• Takes impression using closed tray

Multi Lab Analog

• Achieves Multi abutment of the oral cavity on a working model

Multi Healing Cap

• Used when protecting multi abutment in the oral cavity and minimizing foreign body sensation in patient
• 1.2 hex driver
• Recommended tightening torque : 20Ncm

Multi Plastic Cylinder

• Produces prosthetics by casting with dental-grade alloy (gold, non-precious metals)
• Connection region’s precision is reduced compared to gold cylinder
• 1.2 hex driver
• Recommended tightening torque : 20Ncm
• Packing unit : cylinder + Ti screw

Multi Abutment Outer Driver

• Torque driver specialized for multi-abutments

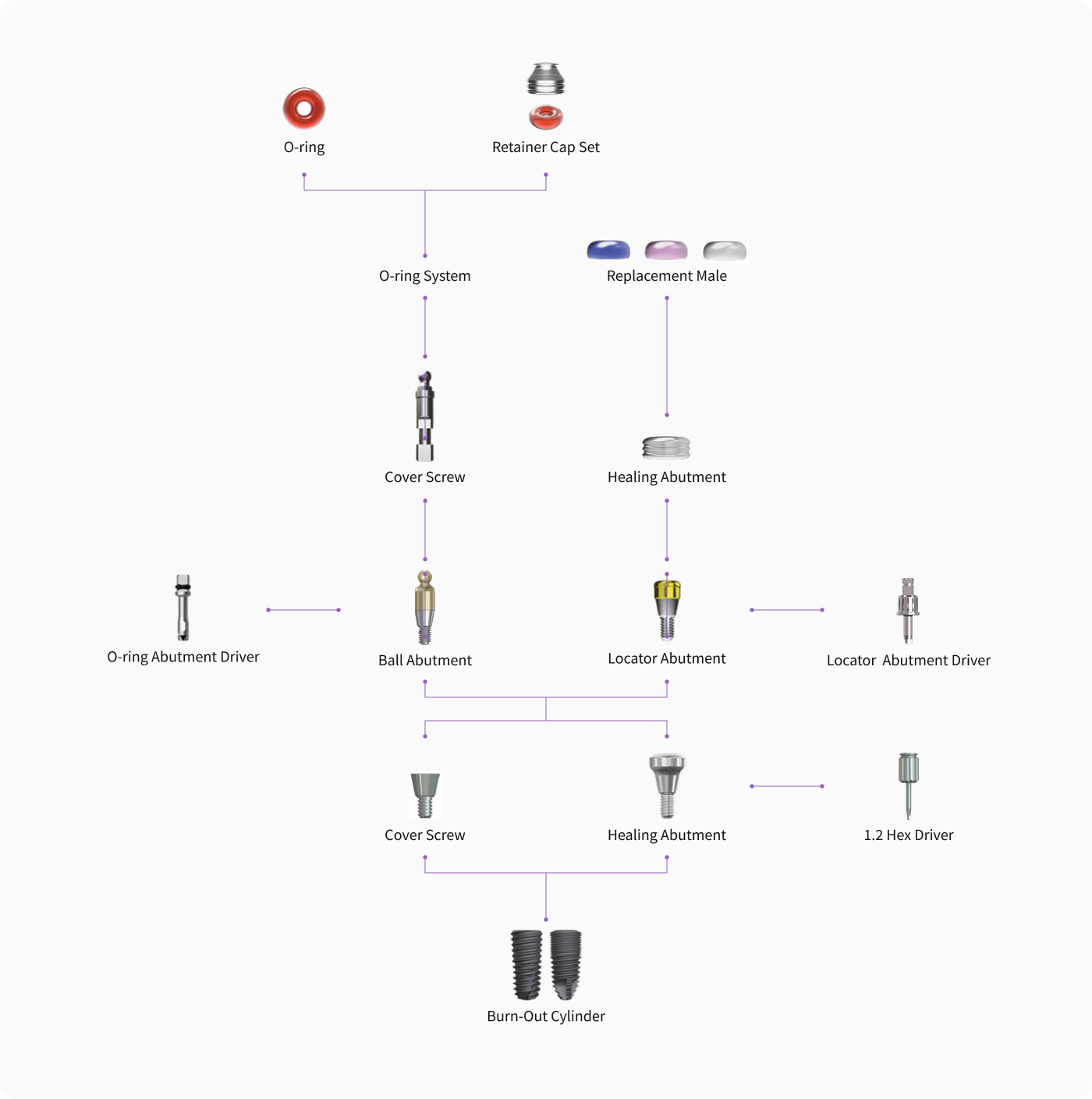

Locator Abutment (Regular)

Locator Abutment (Narrow)

Denture Cap

• Packing unit : Metal Replacement Male

Denture Cap

• Packing unit : Blue Replacement Male
• Retention Force : about 10±5N

Denture Cap

• Packing unit : Pink Replacement Male
• Retention Force : about 20±5N

Denture Cap

• Packing unit : Clear Replacement Male
• Retention Force : about 30±5N

Ball Abutment

Retainer Cap Set

• Packing unit : Retainer cap + O-ring

O-ring

• Packing unit : O-ring 1 piece

O-ring Lab Analog

• Make Oral Ball abutments on the working model
• Packing unit : Lab analog

O-ring Abutment Torque driver
