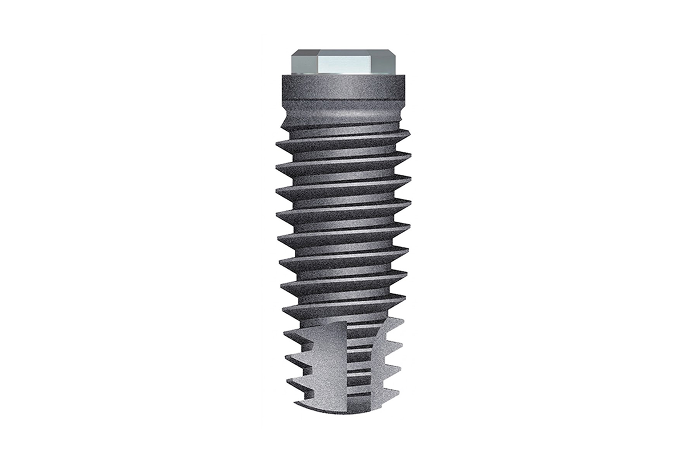

BR IMPLANT
Implant

BR IMPLANT

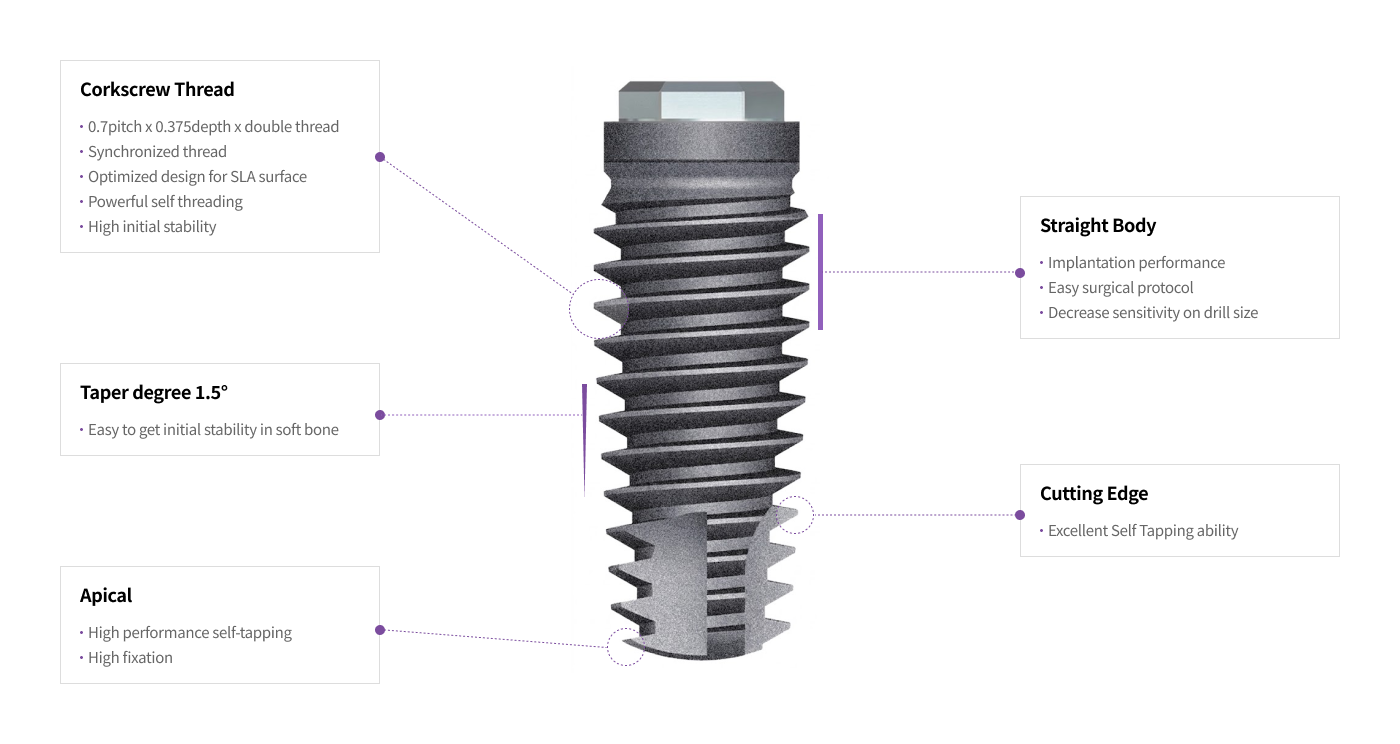

BR Tissue Level Implant System

BR Tissue Level Implant System

FLOW CHART

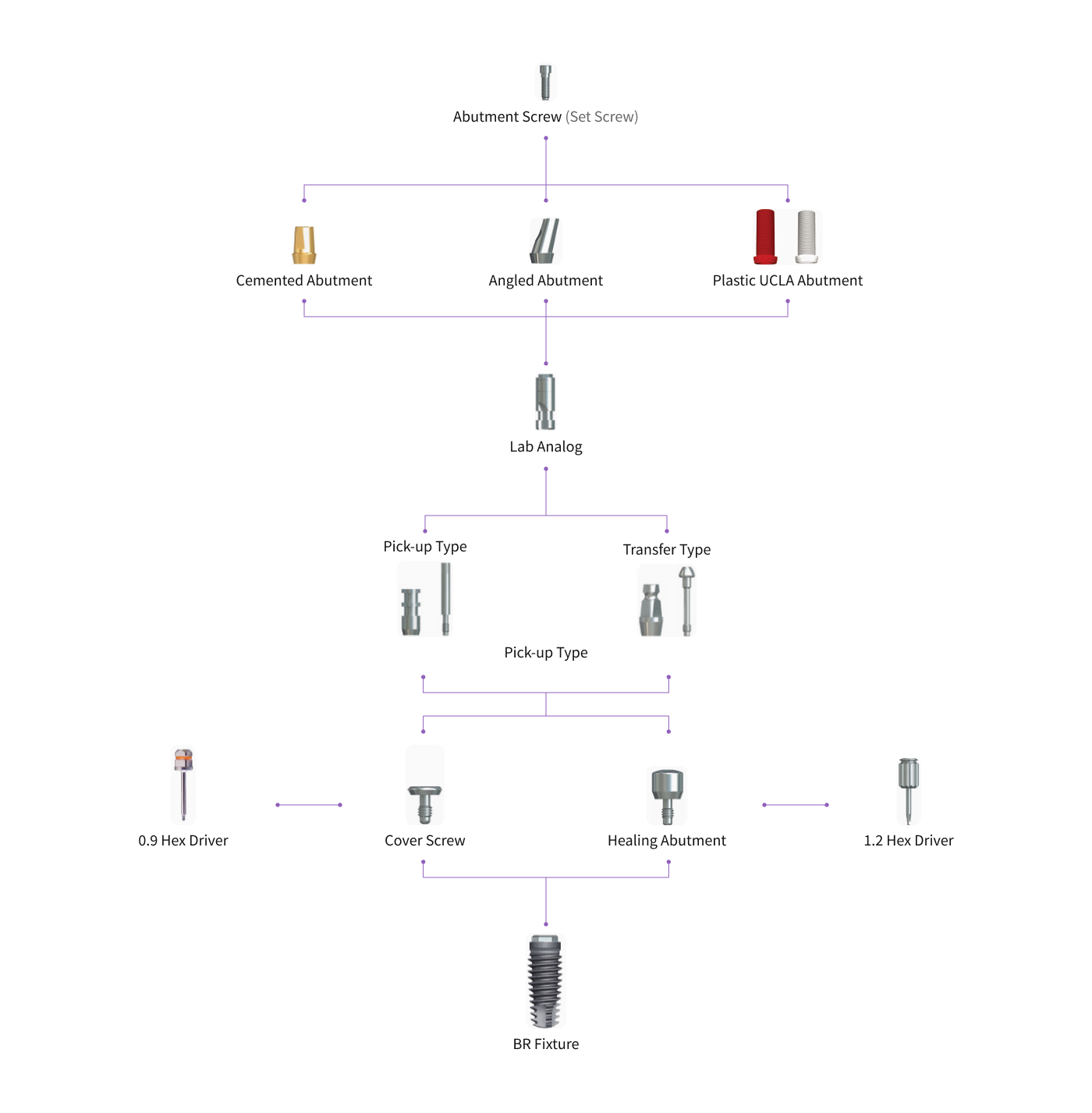

IR PROSTHETIC FLOW CHART
IR PROSTHETIC FLOW CHART

BR DRILLING SEQUENCE

FXBR 3.3

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill Ø3.3 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill Ø3.3 Fixture
Soft Implant
Placement
Normal (Half)
Hard
FXBR 3.7

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.7 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.7 Fixture
Soft Implant
Placement
Normal (Half)
Hard
FXBR 4.0

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill Ø4.0 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill Ø4.0 Fixture
Soft Implant
Placement
Normal (Half)
Hard
FXBR 4.5

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill Ø4.5 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill Ø4.5 Fixture
Soft Implant
Placement
Normal
Hard
FXBR 5.0 

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill Ø5.0 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill Ø5.0 Fixture
Soft Implant
Placement
Normal
Hard
FXBR 6.0

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill F6.0 Drill Ø6.0 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill F6.0 Drill Ø6.0 Fixture
Soft Implant
Placement
Normal
Hard

Product

BR FIXTURE
BR Fixture | SLA
BR Fixture | SLA
BR Fixture | SLA
# BR FIXTURE

BR Fixture | SLA

  • No Mount System : Using a special fixture driver with more durability and easy separation to fixture
  • Surface : SLA

165276473318703 (1).png

BR ABUTMENT
Cover screw
Cover screw
Cover screw
# BR ABUTMENT

Cover screw

  • 0.9 Hex Driver
  • Fastening torque : 5~8Ncm


Healing Abutment
Healing Abutment
Healing Abutment
# BR ABUTMENT

Healing Abutment

  • Use a 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


1652765087359082 (1).png

Cemented Abutment (Hex)
Cemented Abutment (Hex)
Cemented Abutment (Hex)
# BR ABUTMENT

Cemented Abutment (Hex)

  • An abutment for a single prosthesis.
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
# BR ABUTMENT

Cemented Abutment (Non-Hex)

  • An abutment for a single prosthesis.
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment
Angled Abutment
Angled Abutment
# BR ABUTMENT

Angled Abutment

  • Using for adjusting the path of a prosthesis
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm



BR ABUTMENT & COPING
Plastic UCLA Abutment
Plastic UCLA Abutment
Plastic UCLA Abutment
# BR ABUTMENT & COPING

Plastic UCLA Abutment

  • Being used in case of the limited path, esthetic or space
  • A Prosthesis must be made by casting with a dental gold alloy


Transfer Impression Coping
Transfer Impression Coping
Transfer Impression Coping
# BR ABUTMENT & COPING

Transfer Impression Coping

  • A Transfer type with utilizing a close tray

1652765522832507 (1).png

Pick-up Impression Coping
Pick-up Impression Coping
Pick-up Impression Coping
# BR ABUTMENT & COPING

Pick-up Impression Coping


Lab Analog
Lab Analog
Lab Analog
# BR ABUTMENT & COPING

Lab Analog

  • Embodying a fixture of the oral on the working model.
