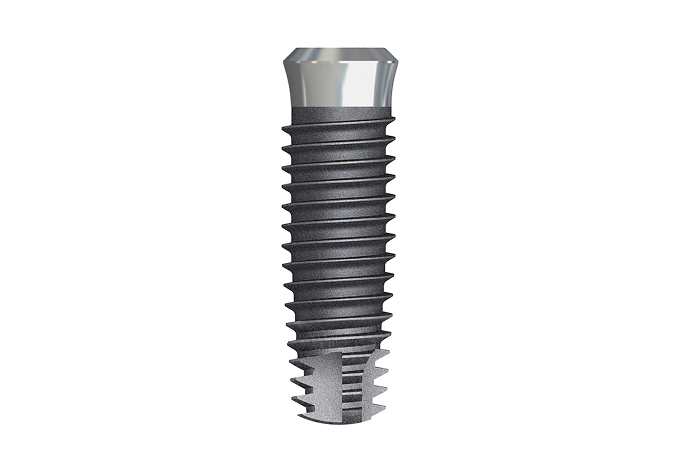

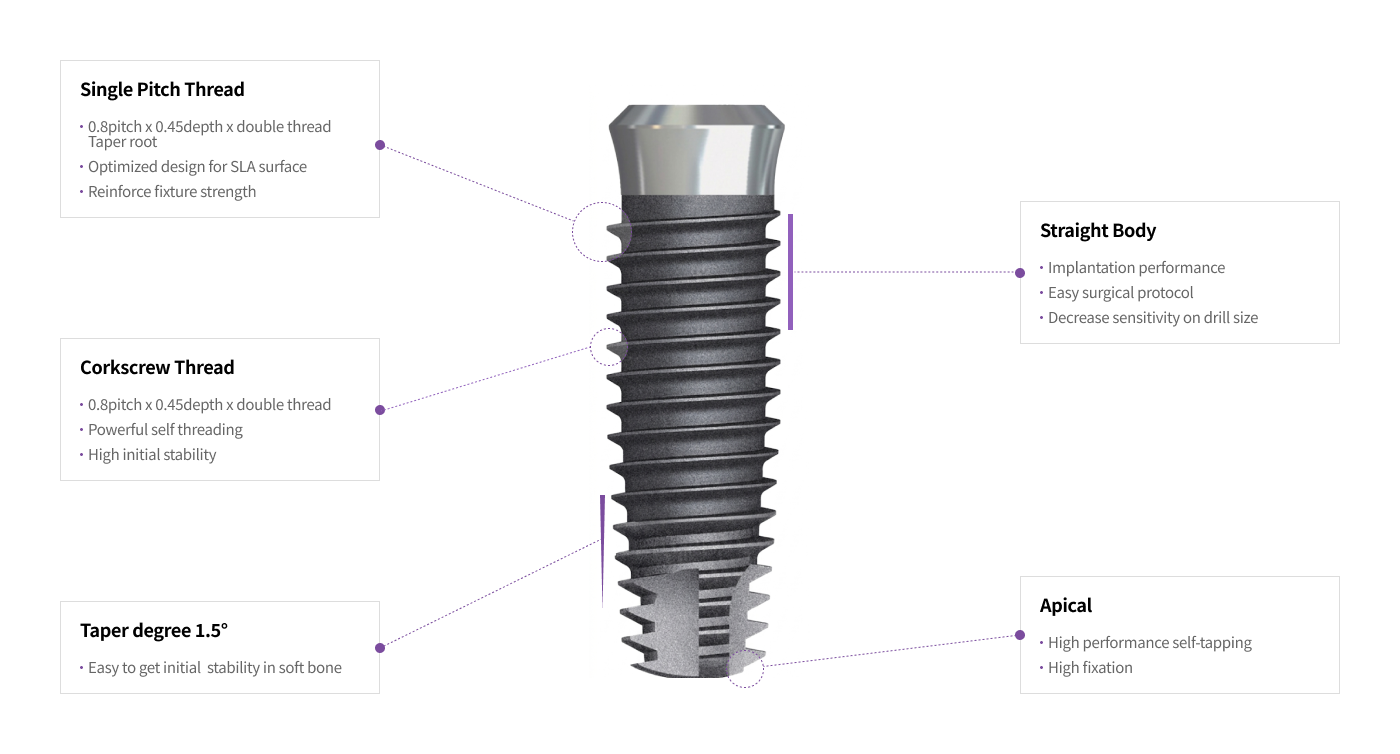

# IR FIXTURE

IR Fixture | SLA

• Machined Surface Cuff : Affinity with the gingival tissue and easy to manage plagues
• Limited Implantation torque : 50 Ncm
• Surface : SLA
• No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture

# IR SCREW & ABUTMENT

Cover Screw

• Using in the case of the limited adjacent space or the insufficient gingival of the suture part
• Using 1.2 Hex Driver
• Fastening torque : 5~8Ncm

# IR SCREW & ABUTMENT

Healing Abutment

• Using 1.2 Hex Driver
• Fastening torque : 5~8Ncm

# IR SCREW & ABUTMENT

Solid Abutment

• Stable connection structure of 8 Morse Taper method
• Using for making the cement typed prosthesis
• Fastening torque : Narrow 20Ncm, Regular / Wide 30Ncm
• Protect Cap is optional

# IR SCREW & ABUTMENT

Wide Solid Abutment

• Stable connection structure of 8 Morse Taper method
• Using for making the cement typed prosthesis
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
• Protect Cap is optional

# IR SCREW & ABUTMENT

Protective Cap

• Stable connection structure of 8 Morse Taper method
• Using for making the cement typed prosthesis
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

# IR SCREW & ABUTMENT

Cemented Abutment

• Stable connection structure of 8 Morse Taper method
• Using for making the cement typed prosthesis
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

# IR SCREW & ABUTMENT

Com Octa Plus Abutment

• Stable connection structure of 8 Morse Taper method
• Using for making the cement typed prosthesis
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

# IR SCREW & ABUTMENT

Angled Abutment

• Using for making the cement typed prosthesis
• Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

# IR SCREW & ABUTMENT

Com Octa Plus Angled Abutment

# IR ANALOG & COPING

Fixture Analog

• A replication of the master model and manufacture a prosthesis with joining a abutment

# IR ANALOG & COPING

Pick-up Impression Coping

• A component that is used in the impression to transfer the position of an implant or analog to a model
• A 1.2 Hex Driver is needed to connect to the guide pin

# IR ANALOG & COPING

Transfer Impression Coping

# IR ANALOG & COPING

Solid Analog

• An integrated Lab Analog of Abutment & Analog

# IR ANALOG & COPING

Plastic Impression Coping

• A Coping for the Impression of Solid Abutment

# IR ANALOG & COPING

Burn-out Cylinder

• Replacement of resin cap before wax up using rigid abutment
• Enabling the production of elaborate prosthesis with uniform interior
• Used after casting, after cleaning the margin for proper fitting
