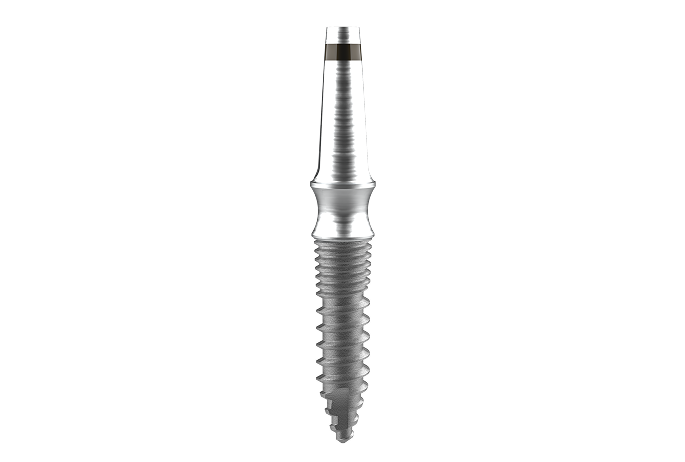

# MR FIXTURE

Micro Thread Type

• This implant is suitable for a narrow ridge, such as the lower anterior region
• Fixture and abutment are combined to withstand chewing pressure and Micro thread design was adopted to increase chewing power
• Surface treatment is sandblasted with alumina oxide and acid etched (SLA)
• The shape and the size of abutment part were optimized to enable prosthetics without cutting
• Temporary cap increases the convenience of manufacturing immediate prosthetics
• Impression cap and lab analog enable a sophisticated restorative process
• Optimal insertion torque : 30Ncm

# MR FIXTURE

Single Thread Type

• A single body, mini dental implant that is designed for narrow spaces such as the mandibular anterior jaw
• Surface treatment is sandblasted with alumina oxide and acid etched (SLA)
• Abutment shape and size is optimized for cutting-free prosthetic work
• Body
• Optimal insertion torque : 30Ncm

# MR FIXTURE

Denture Type

• A single body, mini dental implant that is designed for denture fixation
• Surface treatment is sandblasted with alumina oxide and acid etched (SLA)
• Comes in 2.5 or 4mm gingival heights
• Collar O-ball head for use with O-ring retention set
• Optimal insertion torque : 30Ncm

# MR IMPLANT NARROW RIDGE COMPONENTS

Plastic Impression Coping

• Precise impressions

# MR IMPLANT NARROW RIDGE COMPONENTS

Plastic Temporary Cap

• Fabricate provisional prosthesis

# MR IMPLANT NARROW RIDGE COMPONENTS

Lab Analog

• Implementing the oral MR implant narrow ridge abutment on the working model

# MR IMPLANT NARROW RIDGE COMPONENTS

Burn-out Cylinder

• Can be used as the framework for a prosthesis
• Used to clean the margin of a casted prosthesis

# MR IMPLANT DENTURE COMPONENTS

Retainer Cap Set

• Packing unit : Retainer cap + O-ring

# MR IMPLANT DENTURE COMPONENTS

O-ring

• Packing unit : O-ring 1 piece

# MR IMPLANT DENTURE COMPONENTS

O-ring Lab Analog

• Make Oral Ball abutments on the working model
• Packing unit : Lab analog

# MR IMPLANT DENTURE COMPONENTS

O-ring Abutment Torque driver
