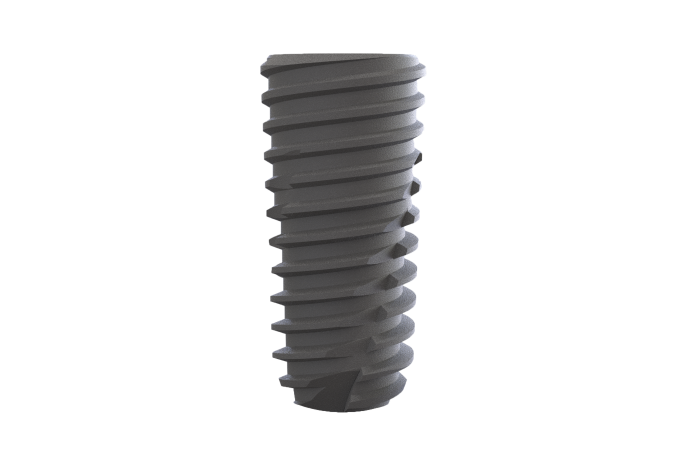

AR IMPLANT
植入体

AR 植入体

具有内六角连接结构的 埋入式种植体

AR 埋入式种植系统

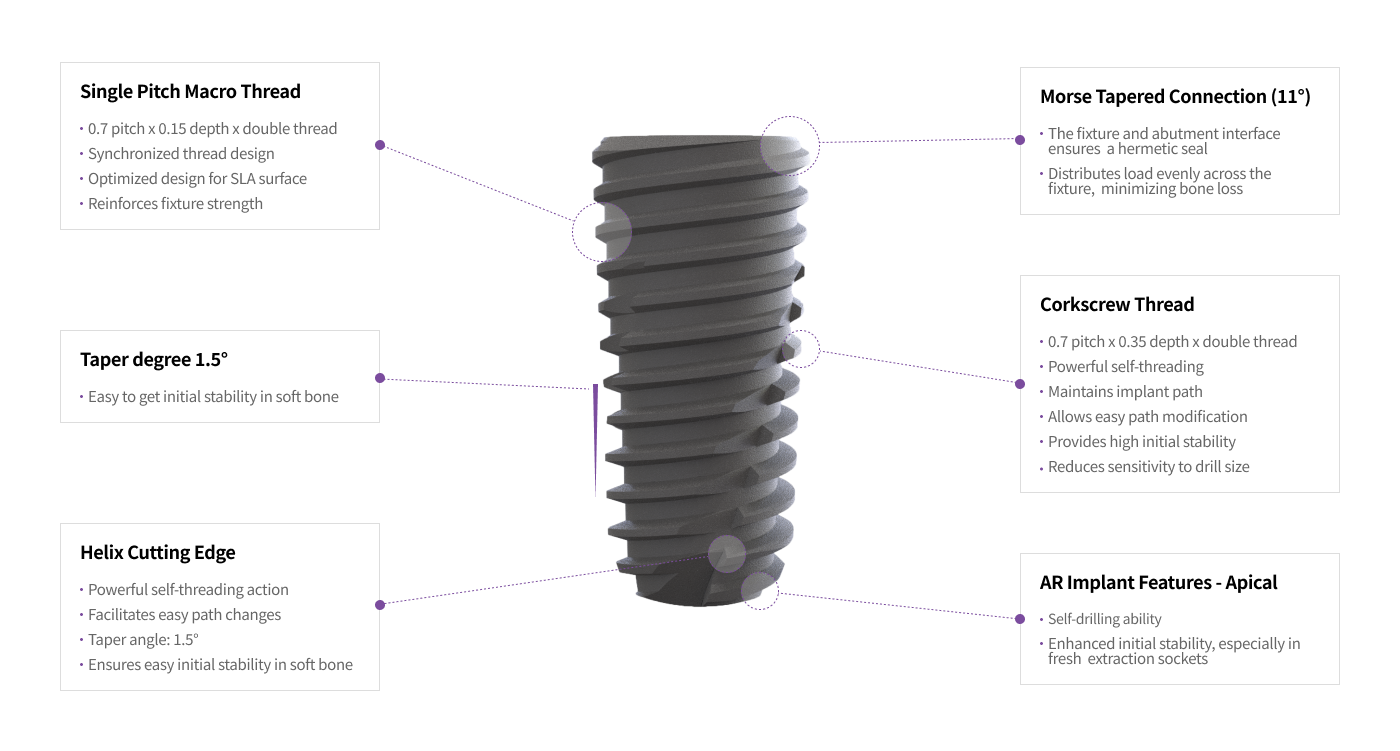

AR Submerged Implant System

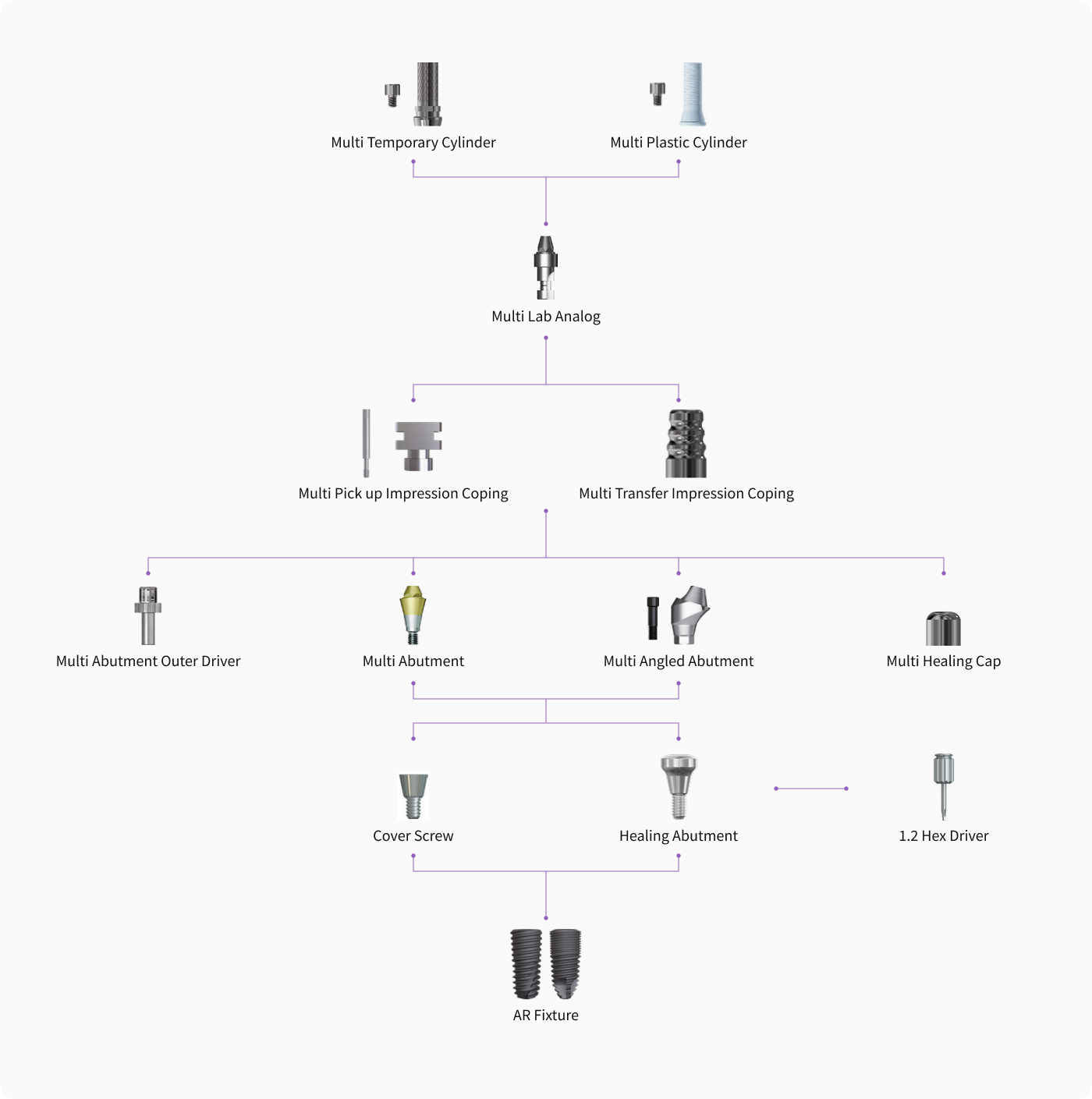

流程图

实心 / 金属基台水平印模
Solid / Cemented Abutment Level Impression
粘接式／倾斜式／铣削式／临时固定式水平印模

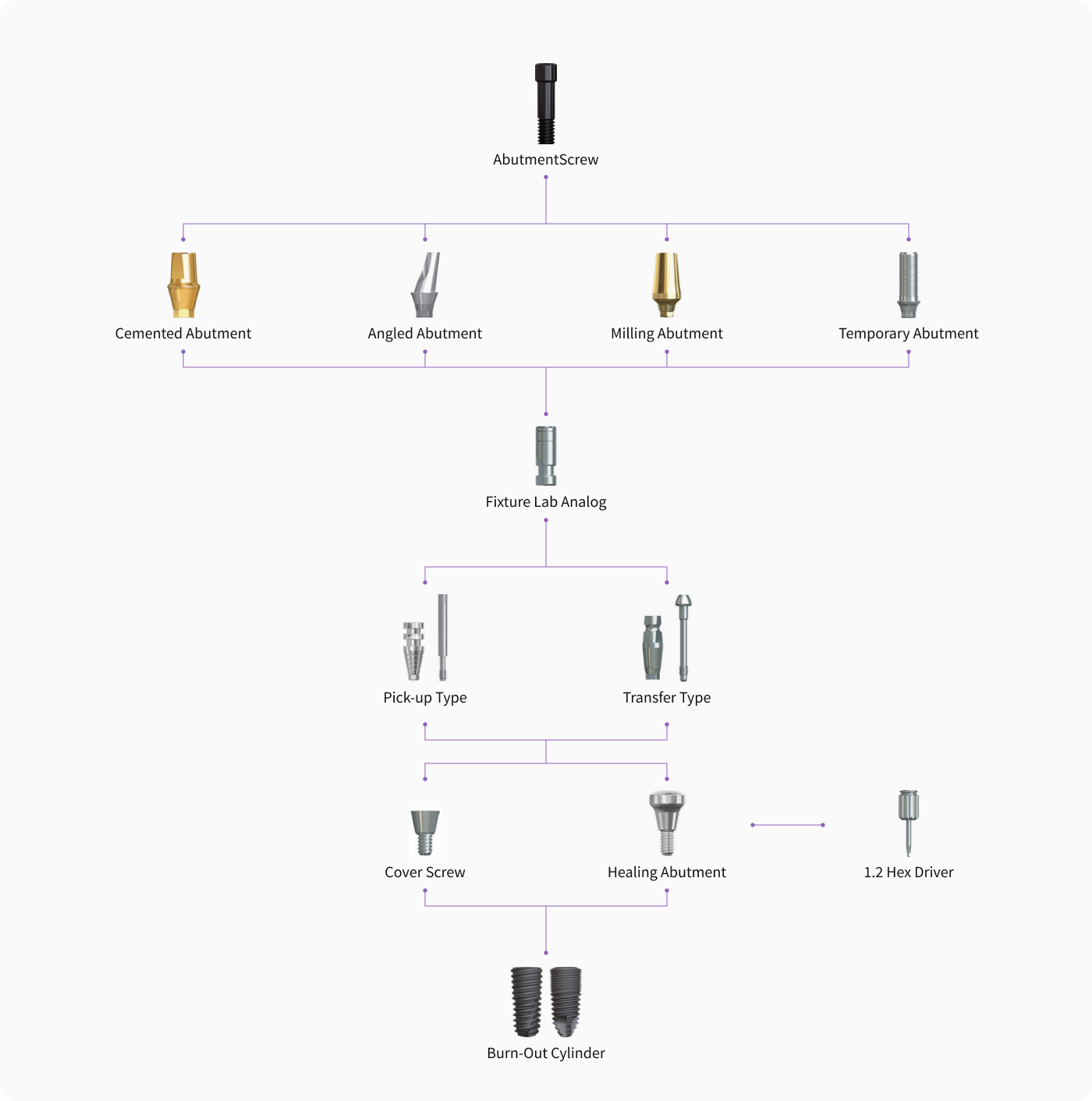

Cemented/ Angled / Milling / Temporary Fixture Level Impression

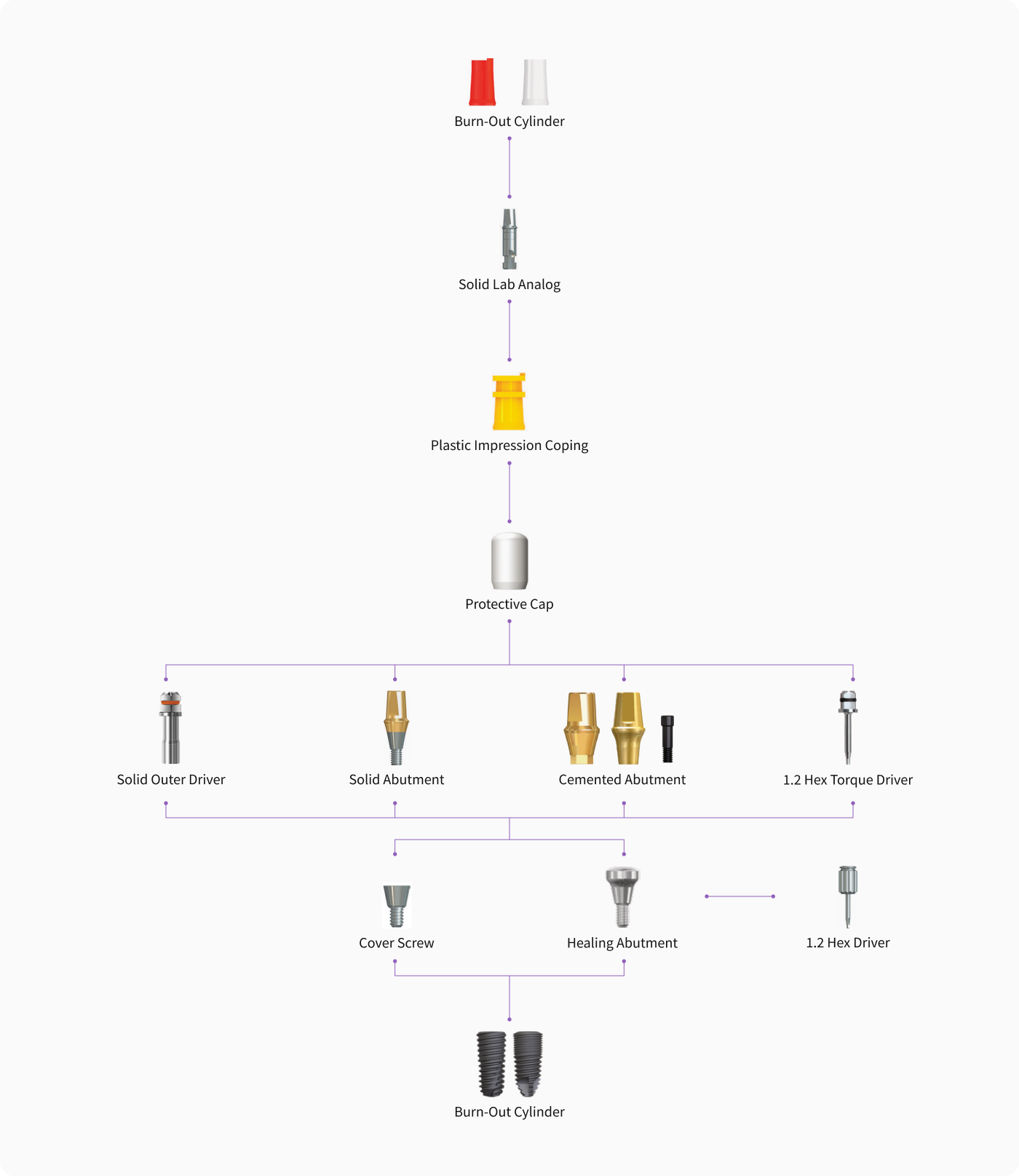

实心 / 金属基台水平印模
Solid / Cemented Abutment Level Impression
定位器 / O型圈覆盖义齿

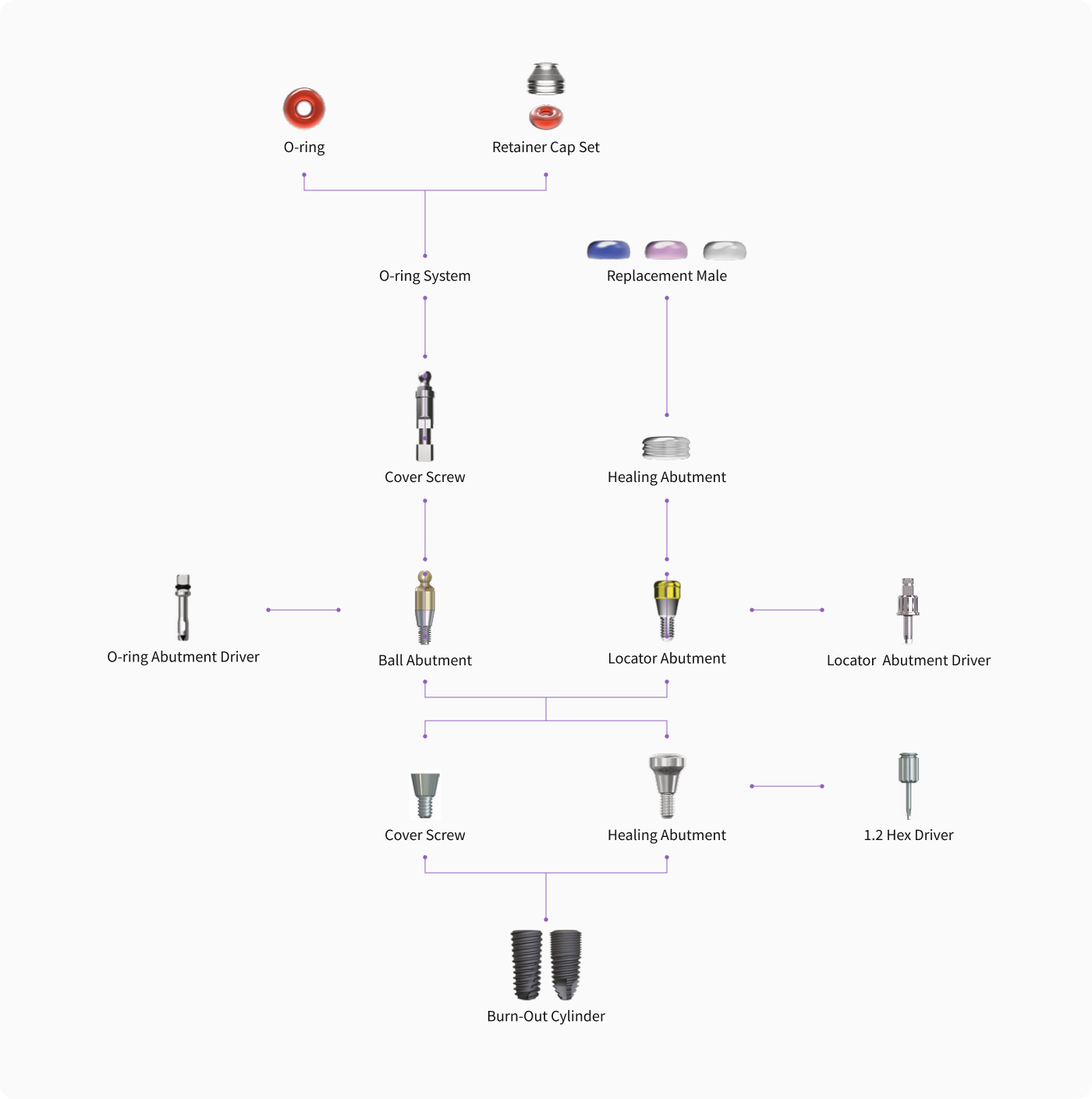

Locator / O-ring Overdenture

AR 钻井流程

FXAR 3.4

钻井 顺序

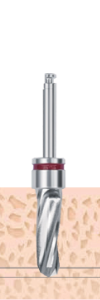

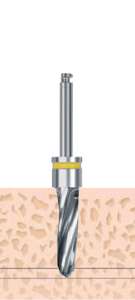

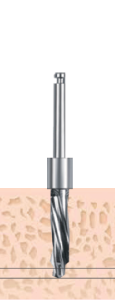

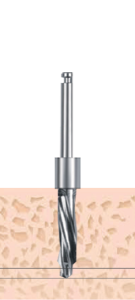

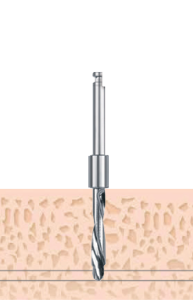

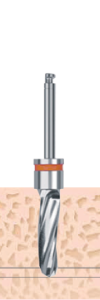

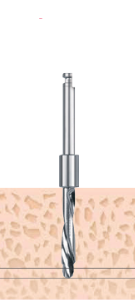

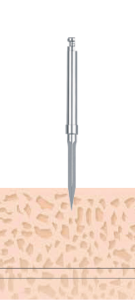

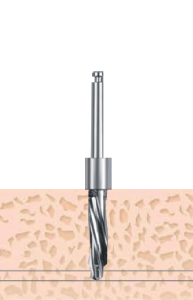

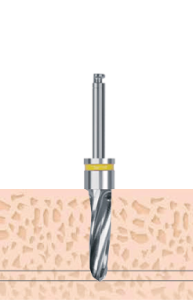

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 Ø3.4 夹具

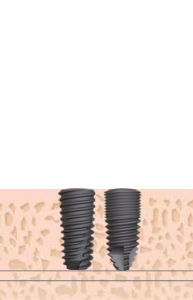

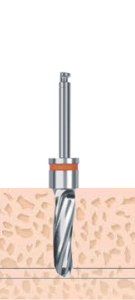

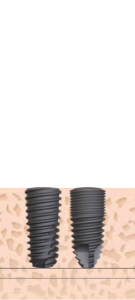

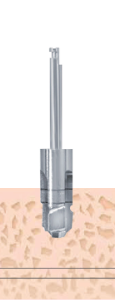

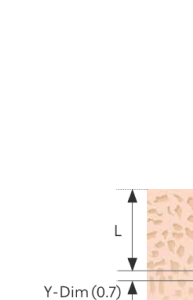

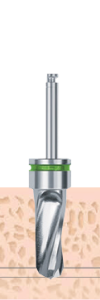

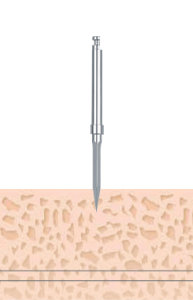

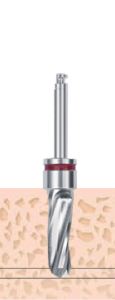

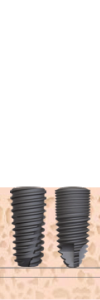

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
软 (半) 植入物
植入
正常
硬 (半)
ASTFA 3.5 / FXAR 3.7

钻井 顺序

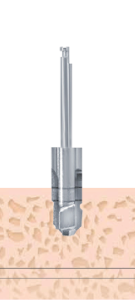

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 Ø3.4 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
软 植入物
植入
正常
硬
ASTFA 3.5 / FXAR 3.7

钻井 顺序

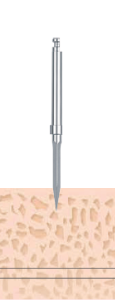

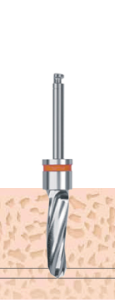

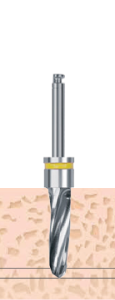

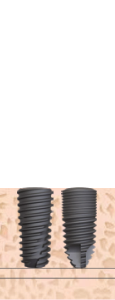

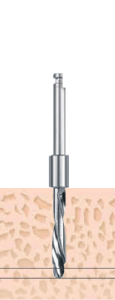

骨密度 点钻 点钻 点钻 2.0 钻头 2.8 钻头 F3.5 钻头l Ø3.4 夹具

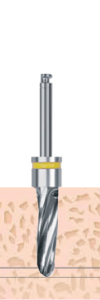

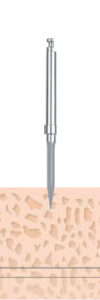

Bone Density Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture
软 植入物
植入
正常
硬
ASTFA 4.5 / FXAR 4.5

钻井 顺序

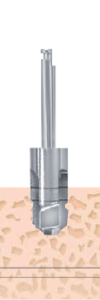

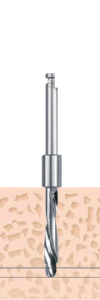

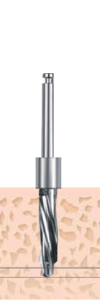

骨密度 点钻 点钻l 点钻 2.0 钻头 2.8 钻头l F3.5 钻头 Ø3.4 夹具 Ø3.4 夹具
Bone Density Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture Ø3.4 Fixture
软 植入物
植入
正常
硬
ASTFA 5.0 / FXAR 5.0

钻井 顺序

骨密度 点钻 点钻 点钻l 点钻 2.0 钻头 2.8 钻头l F3.5 钻头 Ø3.4 夹具 Ø3.4 夹具
Bone Density Point Drill Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture Ø3.4 Fixture
软 植入物
植入
正常
硬
ASTFA 5.0 / FXAR 5.0

钻井 顺序

骨密度 骨密度 点钻 点钻 点钻 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 Ø3.4 夹具 Ø3.4 夹具
Bone Density Bone Density Point Drill Point Drill Point Drill Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.4 Fixture Ø3.4 Fixture
软 植入物
植入
正常
硬

产品

AR 种植体
NON-MICRO THREAD AR FIXTURE (SLA)
NON-MICRO THREAD AR FIXTURE (SLA)
NON-MICRO THREAD AR FIXTURE (SLA)
# AR 种植体

NON-MICRO THREAD AR FIXTURE (SLA)

  • No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture
  • Surface : SLA
  • Recommended placement torque : Less than 30Ncm
  • Tapered angle for maxillary


Tapered AR Fixture | SLA
Tapered AR Fixture | SLA
Tapered AR Fixture | SLA
# AR 种植体

Tapered AR Fixture | SLA

  • Ø 4.0, Ø 5.0 fixture : Expanded Platform (Ø 3.4 fixture is excluded)
  • No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture
  • Surface : SLA
  • Recommended placement torque : Less than 30Ncm

1652769908480874 (1).png

AR 基台
COVER SCREW
COVER SCREW
COVER SCREW
# AR 基台

COVER SCREW

  • Using a 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


HEALING ABUTMENT
HEALING ABUTMENT
HEALING ABUTMENT
# AR 基台

HEALING ABUTMENT

  • Using a 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


1652686255131427 (1).png

SOLID ABUTMENT
SOLID ABUTMENT
SOLID ABUTMENT
# AR 基台

SOLID ABUTMENT

  • An abutment combined with a set screw, for a bridge prosthesis
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect cap is optional


PROTECTIVE CAP
PROTECTIVE CAP
PROTECTIVE CAP
# AR 基台

PROTECTIVE CAP

1652686402811284 (1).png

Cemented Abutment (Hex)
Cemented Abutment (Hex)
Cemented Abutment (Hex)
# AR 基台

Cemented Abutment (Hex)

  • An abutment for a single prosthesis.
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect cap is optional


Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
# AR 基台

Cemented Abutment (Non-Hex)

  • An abutment combined with a set screw, for a bridge prosthesis
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect cap is optional


Milling Abutment (Hex)
Milling Abutment (Hex)
Milling Abutment (Hex)
# AR 基台

Milling Abutment (Hex)

  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Temporary Abutment (Hex)
Temporary Abutment (Hex)
Temporary Abutment (Hex)
# AR 基台

Temporary Abutment (Hex)

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Temporary Abutment (Non-Hex)
Temporary Abutment (Non-Hex)
Temporary Abutment (Non-Hex)
# AR 基台

Temporary Abutment (Non-Hex)

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment (Hex) A-Type
Angled Abutment (Hex) A-Type
Angled Abutment (Hex) A-Type
# AR 基台

Angled Abutment (Hex) A-Type

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

1652694093666080 (1).png

Angled Abutment (Hex) B-Type
Angled Abutment (Hex) B-Type
Angled Abutment (Hex) B-Type
# AR 基台

Angled Abutment (Hex) B-Type

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment (Non-Hex)
Angled Abutment (Non-Hex)
Angled Abutment (Non-Hex)
# AR 基台

Angled Abutment (Non-Hex)

  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Ti-base Abutment
Ti-base Abutment
Ti-base Abutment
# AR 基台

Ti-base Abutment


AR 印模柱
Transfer Impression Coping (Hex)
Transfer Impression Coping (Hex)
Transfer Impression Coping (Hex)
# AR 印模柱

Transfer Impression Coping (Hex)

  • A Transfer type with utilizing a close tray
  • Packing unit : Impression coping body+Guide Pin
  • Hex Type


Transfer Impression Coping (Non-Hex)
Transfer Impression Coping (Non-Hex)
Transfer Impression Coping (Non-Hex)
# AR 印模柱

Transfer Impression Coping (Non-Hex)

  • A Transfer type with utilizing a close tray
  • Packing unit : Impression coping body+Guide Pin
  • Non-Hex Type
Pick-up Impression Coping (Hex)
Pick-up Impression Coping (Hex)
Pick-up Impression Coping (Hex)
# AR 印模柱

Pick-up Impression Coping (Hex)

  • A Pick-up type with utilizing a custom tray.
  • Increasing convenience with being composed of Short & Long

165269339457553 (1).png

Pick-up Impression Coping (Non-Hex)
Pick-up Impression Coping (Non-Hex)
Pick-up Impression Coping (Non-Hex)
# AR 印模柱

Pick-up Impression Coping (Non-Hex)

  • A Pick-up type with utilizing a custom tray.
  • Increasing convenience with being composed of Short & Long


Plastic Impression Coping
Plastic Impression Coping
Plastic Impression Coping
# AR 印模柱

Plastic Impression Coping


Plastic Coping
Plastic Coping
Plastic Coping
# AR 印模柱

Plastic Coping

  • A replication of the master model and manufacture a prosthesis with joining a abutment


AR 替代体
Fixture Lab Analog
Fixture Lab Analog
Fixture Lab Analog
# AR 替代体

Fixture Lab Analog

  • A replication of the master model and manufacture a prosthesis with joining an abutment


Solid Lab Analog
Solid Lab Analog
Solid Lab Analog
# AR 替代体

Solid Lab Analog

  • Integrated type of abutment & analog


AR 多单位基台
Multi Angled Abutment (All-on-4)
Multi Angled Abutment (All-on-4)
Multi Angled Abutment (All-on-4)
# AR 多单位基台

Multi Angled Abutment (All-on-4)

  • Used in implant path compensation in screw retained multiple case
  • Up to 60° path compensation (two implant standard)
  • Recommended tightening torque : 20Ncm(Narrow), 30Ncm(regular)

1652687122379593 (1).png

Multi Abutment
Multi Abutment
Multi Abutment
# AR 多单位基台

Multi Abutment

  • Uses specialized outer driver (AMOD)
  • Used in screw type prosthetics in multiple cases
  • Recommended tightening torque: 30Ncm

1652687176597164 (1).png

AR 多单位配件
Multi Temporary Cylinder
Multi Temporary Cylinder
Multi Temporary Cylinder
# AR 多单位配件

Multi Temporary Cylinder

  • Used in producing temporary prosthetic with multi abutment (Material: Ti Gr-3)
  • Structure allows for easy customization and minimization of indication constraints
  • 1.2 hex driver
  • Recommended tightening torque : 20Ncm
  • Packing unit : cylinder + Ti screw


Multi Transfer Impression Coping
Multi Transfer Impression Coping
Multi Transfer Impression Coping
# AR 多单位配件

Multi Transfer Impression Coping

  • Takes impression using closed tray


Multi Lab Analog
Multi Lab Analog
Multi Lab Analog
# AR 多单位配件

Multi Lab Analog

  • Achieves Multi abutment of the oral cavity on a working model


Multi Healing Cap
Multi Healing Cap
Multi Healing Cap
# AR 多单位配件

Multi Healing Cap

  • Used when protecting multi abutment in the oral cavity and minimizing foreign body sensation in patient
  • 1.2 hex driver
  • Recommended tightening torque : 20Ncm


Multi Plastic Cylinder
Multi Plastic Cylinder
Multi Plastic Cylinder
# AR 多单位配件

Multi Plastic Cylinder

  • Produces prosthetics by casting with dental-grade alloy (gold, non-precious metals)
  • Connection region’s precision is reduced compared to gold cylinder
  • 1.2 hex driver
  • Recommended tightening torque : 20Ncm
  • Packing unit : cylinder + Ti screw

1652687515655006 (1).png

Multi Abutment Outer Driver
Multi Abutment Outer Driver
Multi Abutment Outer Driver
# AR 多单位配件

Multi Abutment Outer Driver

  • Torque driver specialized for multi-abutments


Locator 基台
Locator Abutment (Regular)
Locator Abutment (Regular)
Locator Abutment (Regular)
# Locator 基台

Locator Abutment (Regular)

1652689063908164 (1).png

Locator Abutment (Narrow)
Locator Abutment (Narrow)
Locator Abutment (Narrow)
# Locator 基台

Locator Abutment (Narrow)


AR Locator 基台配件
Denture Cap
Denture Cap
Denture Cap
# AR Locator 基台配件

Denture Cap

  • Packing unit : Metal Replacement Male


Denture Cap
Denture Cap
Denture Cap
# AR Locator 基台配件

Denture Cap

  • Packing unit : Blue Replacement Male
  • Retention Force : about 10±5N

  1. 1652689280889429.png

Denture Cap
Denture Cap
Denture Cap
# AR Locator 基台配件

Denture Cap

  • Packing unit : Pink Replacement Male
  • Retention Force : about 20±5N


Denture Cap
Denture Cap
Denture Cap
# AR Locator 基台配件

Denture Cap

  • Packing unit : Clear Replacement Male
  • Retention Force : about 30±5N


AR 球头基台及配件
Ball Abutment
Ball Abutment
Ball Abutment
# AR 球头基台及配件

Ball Abutment


Retainer Cap Set
Retainer Cap Set
Retainer Cap Set
# AR 球头基台及配件

Retainer Cap Set

  • Packing unit : Retainer cap + O-ring


O-ring
O-ring
O-ring
# AR 球头基台及配件

O-ring

  • Packing unit : O-ring 1 piece


O-ring Lab Analog
O-ring Lab Analog
O-ring Lab Analog
# AR 球头基台及配件

O-ring Lab Analog

  • Make Oral Ball abutments on the working model
  • Packing unit : Lab analog

1652689809986913 (1).png

O-ring Abutment Torque driver
O-ring Abutment Torque driver
O-ring Abutment Torque driver
# AR 球头基台及配件

O-ring Abutment Torque driver
