BIOTEM 始终与客户近在咫尺。

IR

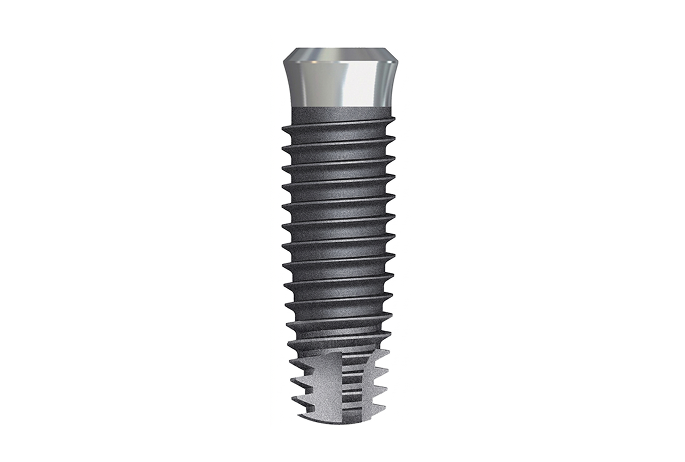

IR IMPLANT
Implant

IR IMPLANT

基于单次植入的INTERNAL OCTA结构的 NON-SUBMERGED TYPE种植体

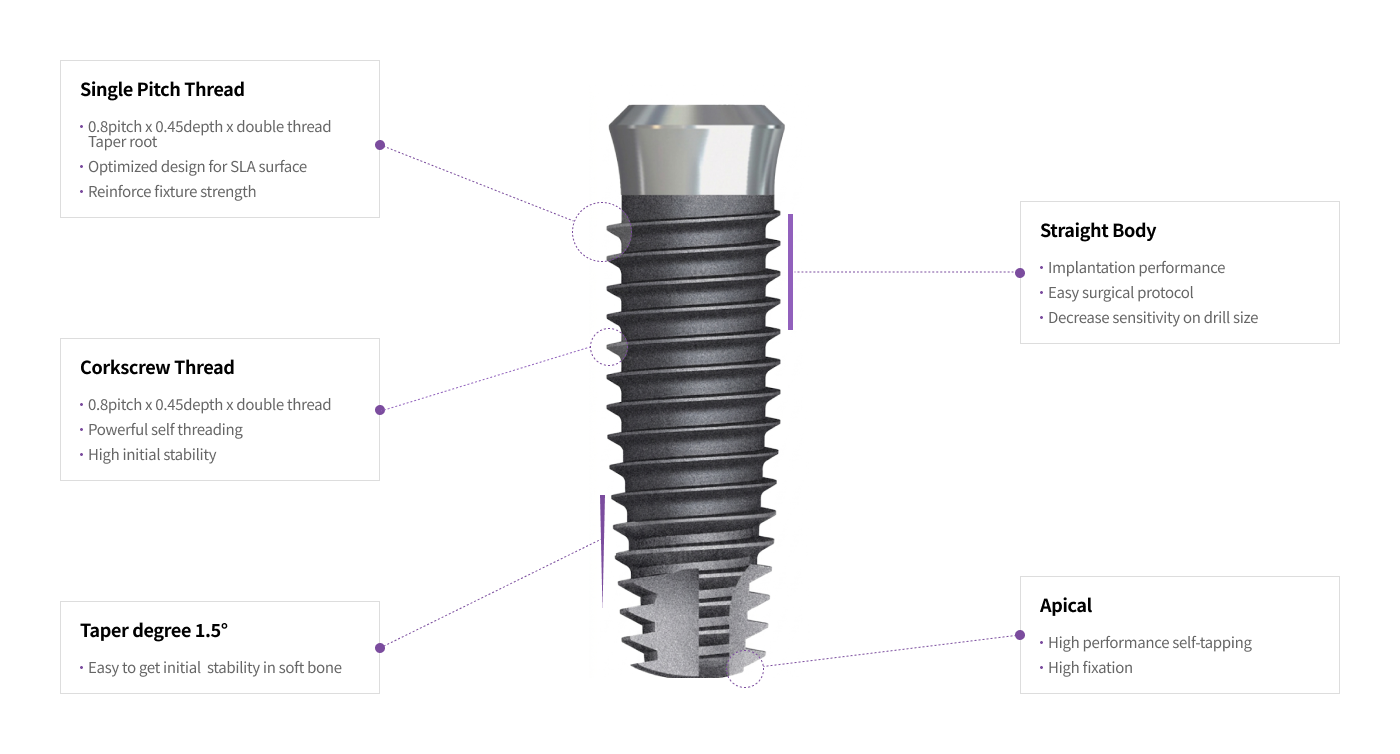

IR Tissue Level Implant System

IR Tissue Level Implant System

FLOW CHART

IR PROSTHETIC FLOW CHART
IR PROSTHETIC FLOW CHART

IR DRILLING SEQUENCE

FXIR 3.5

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.5 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.5 Fixture
Soft Implant
Placement
Normal (Half)
Hard
FXIR 4.1

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill Ø4.1 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill Ø4.1 Fixture
Soft Implant
Placement
Normal (Half)
Hard
FXIR 4.8

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F4.8 Drill Ø4.8 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F4.8 Drill Ø4.8 Fixture
Soft Implant
Placement
Normal (Half)
Hard
FXIR 5.5

Drilling Sequence

Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F4.8 Drill F5.5 Drill Ø5.5 Fixture
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F4.8 Drill F5.5 Drill Ø5.5 Fixture
Soft Implant
Placement
Normal (Half)
Hard

Product

IR FIXTURE
IR Fixture | SLA
IR Fixture | SLA
IR Fixture | SLA
# IR FIXTURE

IR Fixture | SLA

  • Machined Surface Cuff : Affinity with the gingival tissue and easy to manage plagues
  • Limited Implantation torque : 50 Ncm
  • Surface : SLA
  • No Mount System : Using a special fixture driver with more durability and easy separation-connection to fixture


IR SCREW & ABUTMENT
Cover Screw
Cover Screw
Cover Screw
# IR SCREW & ABUTMENT

Cover Screw

  • Using in the case of the limited adjacent space or the insufficient gingival of the suture part
  • Using 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


Healing Abutment
Healing Abutment
Healing Abutment
# IR SCREW & ABUTMENT

Healing Abutment

  • Using 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


Solid Abutment
Solid Abutment
Solid Abutment
# IR SCREW & ABUTMENT

Solid Abutment

  • Stable connection structure of 8 Morse Taper method
  • Using for making the cement typed prosthesis
  • Fastening torque : Narrow 20Ncm, Regular / Wide 30Ncm
  • Protect Cap is optional


Wide Solid Abutment
Wide Solid Abutment
Wide Solid Abutment
# IR SCREW & ABUTMENT

Wide Solid Abutment

  • Stable connection structure of 8 Morse Taper method
  • Using for making the cement typed prosthesis
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm
  • Protect Cap is optional


Protective Cap
Protective Cap
Protective Cap
# IR SCREW & ABUTMENT

Protective Cap

  • Stable connection structure of 8 Morse Taper method
  • Using for making the cement typed prosthesis
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Cemented Abutment
Cemented Abutment
Cemented Abutment
# IR SCREW & ABUTMENT

Cemented Abutment

  • Stable connection structure of 8 Morse Taper method
  • Using for making the cement typed prosthesis
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Com Octa Plus Abutment
Com Octa Plus Abutment
Com Octa Plus Abutment
# IR SCREW & ABUTMENT

Com Octa Plus Abutment

  • Stable connection structure of 8 Morse Taper method
  • Using for making the cement typed prosthesis
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment
Angled Abutment
Angled Abutment
# IR SCREW & ABUTMENT

Angled Abutment

  • Using for making the cement typed prosthesis
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm

1652763110135747 (1).png

Com Octa Plus Angled Abutment
Com Octa Plus Angled Abutment
Com Octa Plus Angled Abutment
# IR SCREW & ABUTMENT

Com Octa Plus Angled Abutment


IR ANALOG & COPING
Fixture Analog
Fixture Analog
Fixture Analog
# IR ANALOG & COPING

Fixture Analog

  • A replication of the master model and manufacture a prosthesis with joining a abutment

1652763244558132 (2).png

Pick-up Impression Coping
Pick-up Impression Coping
Pick-up Impression Coping
# IR ANALOG & COPING

Pick-up Impression Coping

  • A component that is used in the impression to transfer the position of an implant or analog to a model
  • A 1.2 Hex Driver is needed to connect to the guide pin

1652763731551989 (2).png

Transfer Impression Coping
Transfer Impression Coping
Transfer Impression Coping
# IR ANALOG & COPING

Transfer Impression Coping

1652763981548701 (1).png

Solid Analog
Solid Analog
Solid Analog
# IR ANALOG & COPING

Solid Analog

  • An integrated Lab Analog of Abutment & Analog

1652764053120828 (2).png

Plastic Impression Coping
Plastic Impression Coping
Plastic Impression Coping
# IR ANALOG & COPING

Plastic Impression Coping

  • A Coping for the Impression of Solid Abutment

1652764120612535 (1).png

Burn-out Cylinder
Burn-out Cylinder
Burn-out Cylinder
# IR ANALOG & COPING

Burn-out Cylinder

  • Replacement of resin cap before wax up using rigid abutment
  • Enabling the production of elaborate prosthesis with uniform interior
  • Used after casting, after cleaning the margin for proper fitting
