BIOTEM 始终与客户近在咫尺。

BR

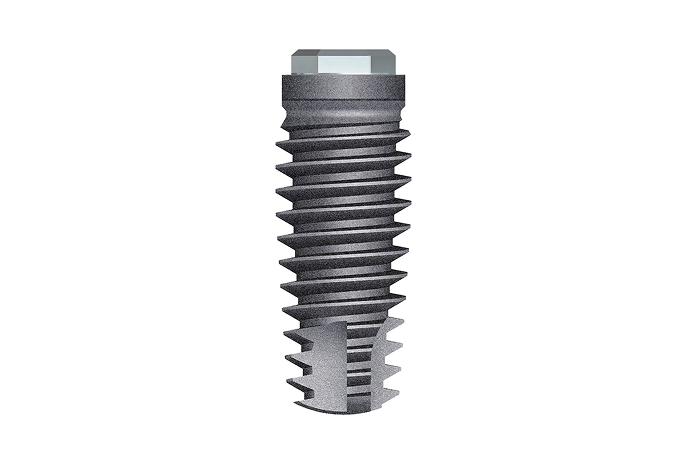

BR IMPLANT
植入体

BR 植入体

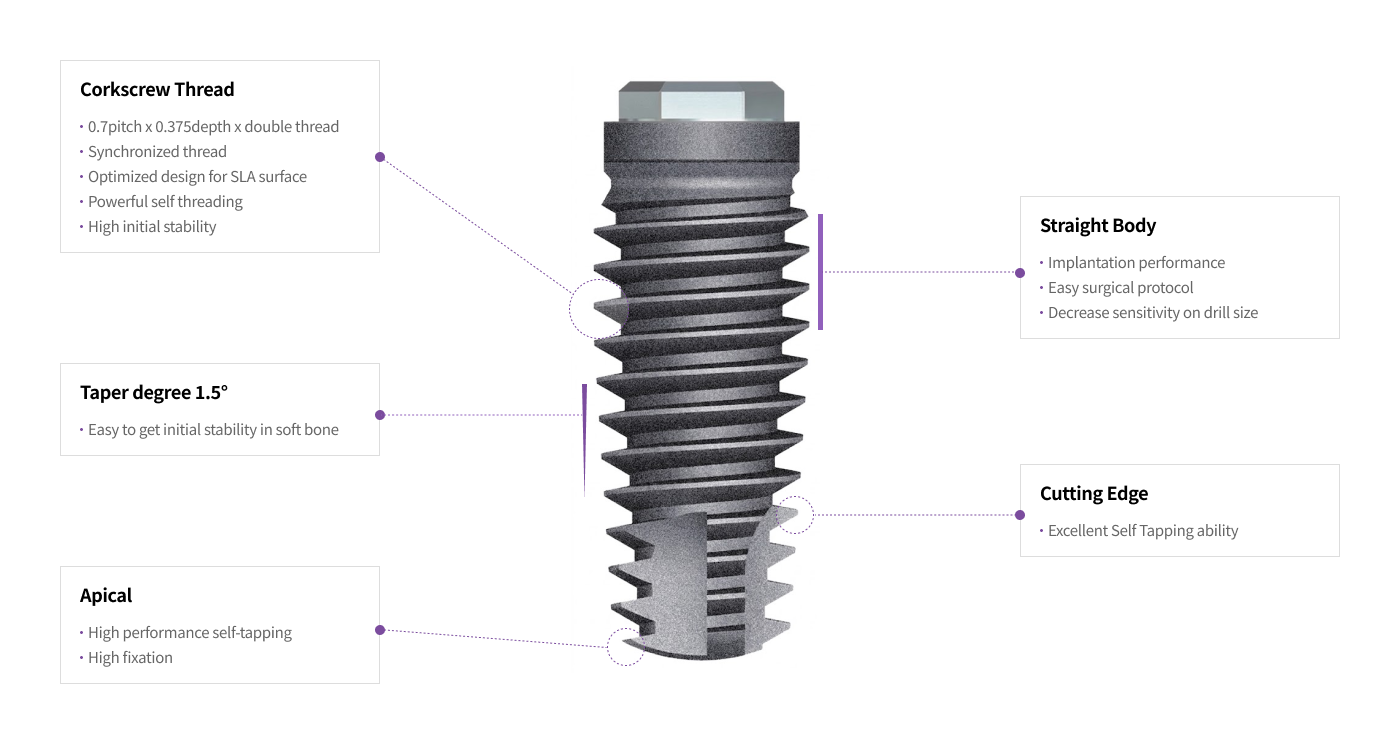

BR 组织水平种植系统

BR Tissue Level Implant System

流程图

IR 假肢流程图
IR PROSTHETIC FLOW CHART

BR 钻井流程

FXBR 3.3

钻井 顺序

骨密度 点钻 2.0 钻头 2.8 钻头 Ø3.3 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill Ø3.3 Fixture
软 植入物
植入
正常 (半)
硬
FXBR 3.7

钻井 顺序

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 Ø3.7 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill Ø3.7 Fixture
软 植入物
植入
正常 (半)
硬
FXBR 4.0

钻井 顺序

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 F4.0 钻头 Ø4.0 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill Ø4.0 Fixture
软 植入物
植入
正常 (半)
硬
FXBR 4.5

钻井 顺序

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 F4.0 钻头 F4.5 钻头 Ø4.5 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill Ø4.5 Fixture
软 植入物
植入
正常
硬
FXBR 5.0 

钻井 顺序

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 F4.0 钻头 F4.5 钻头 F5.0 钻头 Ø5.0 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill Ø5.0 Fixture
软 植入物
植入
正常
硬
FXBR 6.0

钻井 顺序

骨密度 点钻 2.0 钻头 2.8 钻头 F3.5 钻头 F4.0 钻头 F4.5 钻头 F5.0 钻头 F6.0 钻头 Ø6.0 夹具
Bone Density Point Drill 2.0 Drill 2.8 Drill F3.5 Drill F4.0 Drill F4.5 Drill F5.0 Drill F6.0 Drill Ø6.0 Fixture
软 植入物
植入
正常
硬

产品

BR 种植体
BR Fixture | SLA
BR Fixture | SLA
BR Fixture | SLA
# BR 种植体

BR Fixture | SLA

  • No Mount System : Using a special fixture driver with more durability and easy separation to fixture
  • Surface : SLA

165276473318703 (1).png

BR 基台
Cover screw
Cover screw
Cover screw
# BR 基台

Cover screw

  • 0.9 Hex Driver
  • Fastening torque : 5~8Ncm


Healing Abutment
Healing Abutment
Healing Abutment
# BR 基台

Healing Abutment

  • Use a 1.2 Hex Driver
  • Fastening torque : 5~8Ncm


1652765087359082 (1).png

Cemented Abutment (Hex)
Cemented Abutment (Hex)
Cemented Abutment (Hex)
# BR 基台

Cemented Abutment (Hex)

  • An abutment for a single prosthesis.
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
Cemented Abutment (Non-Hex)
# BR 基台

Cemented Abutment (Non-Hex)

  • An abutment for a single prosthesis.
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm


Angled Abutment
Angled Abutment
Angled Abutment
# BR 基台

Angled Abutment

  • Using for adjusting the path of a prosthesis
  • Using a 1.2 Hex Driver
  • Fastening torque : Narrow 20Ncm Regular / Wide 30Ncm



BR 基台及印模柱
Plastic UCLA Abutment
Plastic UCLA Abutment
Plastic UCLA Abutment
# BR 基台及印模柱

Plastic UCLA Abutment

  • Being used in case of the limited path, esthetic or space
  • A Prosthesis must be made by casting with a dental gold alloy


Transfer Impression Coping
Transfer Impression Coping
Transfer Impression Coping
# BR 基台及印模柱

Transfer Impression Coping

  • A Transfer type with utilizing a close tray

1652765522832507 (1).png

Pick-up Impression Coping
Pick-up Impression Coping
Pick-up Impression Coping
# BR 基台及印模柱

Pick-up Impression Coping


Lab Analog
Lab Analog
Lab Analog
# BR 基台及印模柱

Lab Analog

  • Embodying a fixture of the oral on the working model.
