Implant

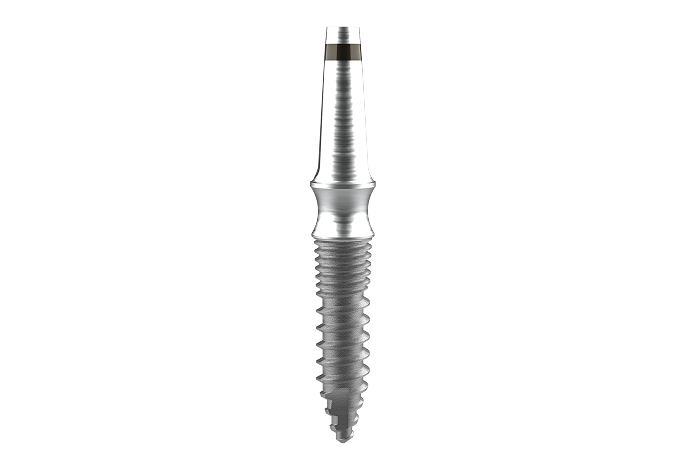

MR IMPLANT
适用于 Narrow Ridge 种植的 One Body 种植体
MR DRILLING SEQUENCE
BOS 2.5 / BOB 2.5
Drilling Sequence

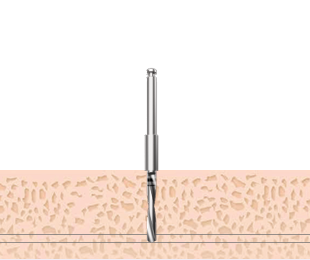

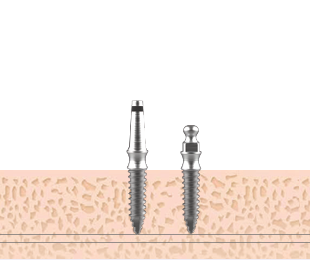

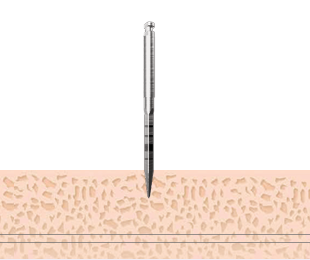

| Bone Density | Point Drill | 2.1 Drill | Ø2.5 Fixture |
|---|---|---|---|
 |
 |
 |
 |
| Soft |
Implant Placement |
||
| Normal | (Half) | ||
| Hard |
BOS 3.0 / BOB 3.0
Drilling Sequence
| Bone Density | Point Drill | 2.1 Drill | 2.5 Drill | Ø3.0 Fixture |
|---|---|---|---|---|
 |
 |
 |
 |
 |
| Soft |
Implant Placement |
|||
| Normal | (Half) | |||
| Hard |
Product
MR FIXTURE
# MR FIXTURE
Micro Thread Type
- This implant is suitable for a narrow ridge, such as the lower anterior region
- Fixture and abutment are combined to withstand chewing pressure and Micro thread design was adopted to increase chewing power
- Surface treatment is sandblasted with alumina oxide and acid etched (SLA)
- The shape and the size of abutment part were optimized to enable prosthetics without cutting
- Temporary cap increases the convenience of manufacturing immediate prosthetics
- Impression cap and lab analog enable a sophisticated restorative process
- Optimal insertion torque : 30Ncm
# MR FIXTURE
Single Thread Type
- A single body, mini dental implant that is designed for narrow spaces such as the mandibular anterior jaw
- Surface treatment is sandblasted with alumina oxide and acid etched (SLA)
- Abutment shape and size is optimized for cutting-free prosthetic work
- Body
- Optimal insertion torque : 30Ncm
