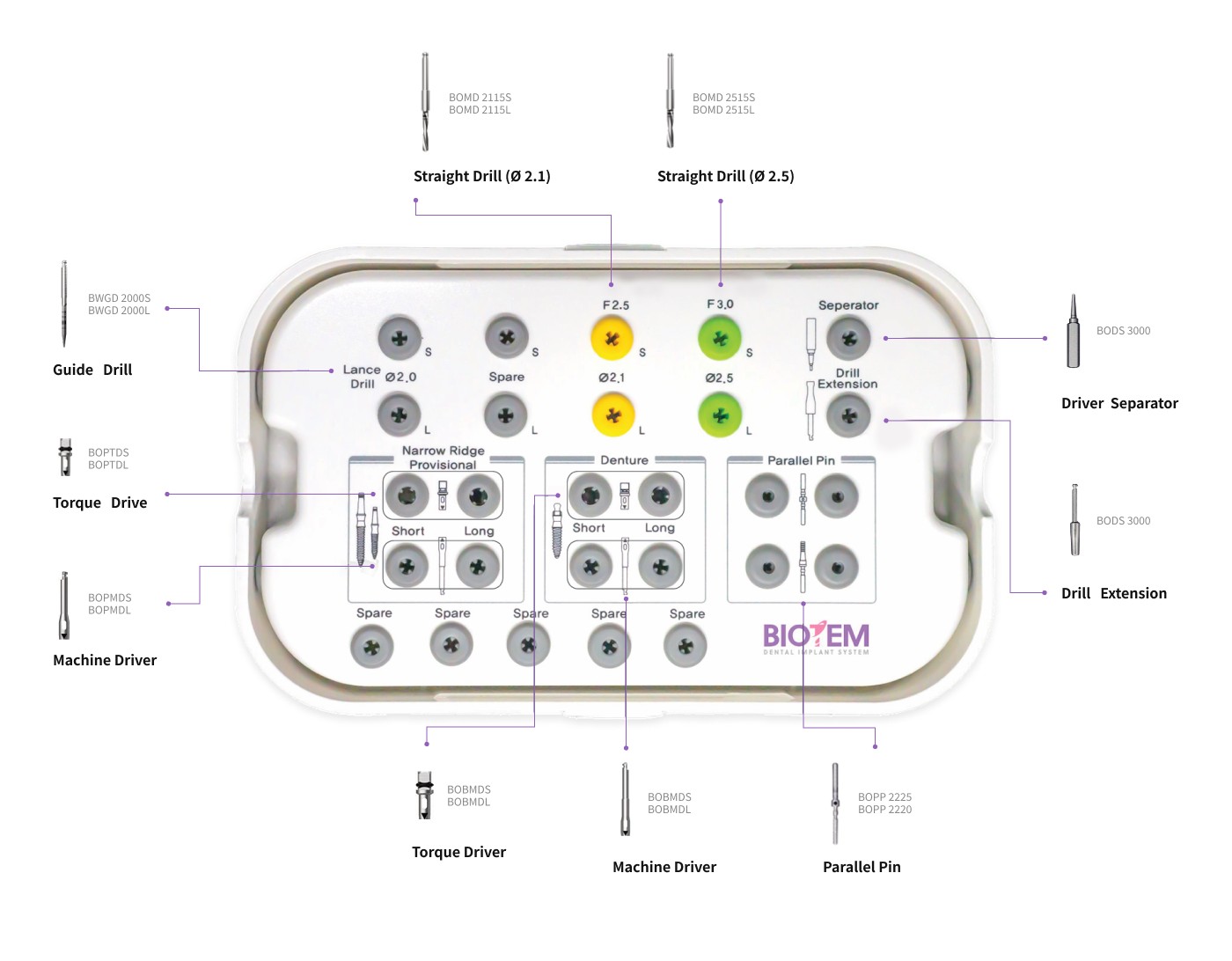

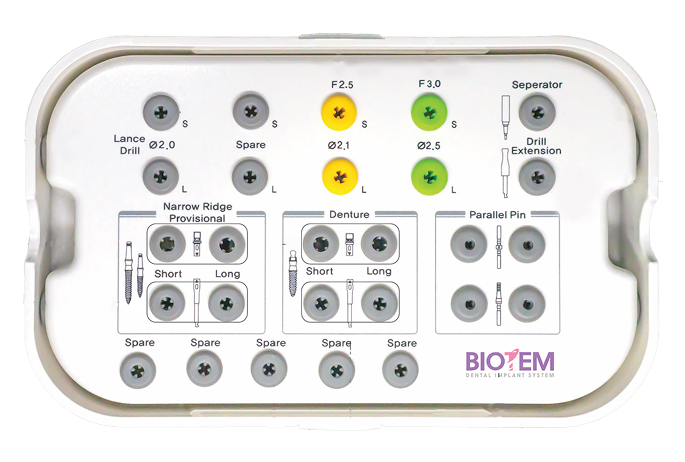

# MR 手术盒配件

Lance drill

• High visibility during surgery with laser markings at 8, 10, 11.5, 13, and 15, measurements correspond to the length of MR implants.
• The Lance Drill is for cortical bone only; however, it is possible to drilling up to marker depending upon the surgical situation.

# MR 手术盒配件

Straight Drill

• High visibility during surgery with laser markings at 8, 10, 11.5, 13, and 15, measurements correspond to the length of MR implants.
• The Lance Drill is for cortical bone only; however, it is possible to drilling up to marker depending upon the surgical situation.

# MR 手术盒配件

Torque driver

• Driver for the MR implant narrow ridge and provisional type
• Connect by matching up the triangle marker with the cross section of the implant (as shown)

# MR 手术盒配件

Machine driver

• Driver for the MR implant narrow ridge and provisional type
• Connect by matching up the triangle marker with the cross section of the implant (as shown)

# MR 手术盒配件

O-ring Abutment Torque driver

• Driver for MR implant denture
• Connect by matching up the triangle marker with the cross section of the implant (as shown)

# MR 手术盒配件

O-ring Abutment Machine driver

• Driver for MR implant denture
• Connect by matching up the triangle marker with the cross section of the implant (as shown)

# MR 手术盒配件

Gauge for MR Implant

• Depth gauge : Left side: Measures drilling depth / Right side: Used to modify the MR Implant Provisional neck angle
• Never modify the MR narrow ridge neck
• Parallel pin is used to check the path after drilling

# MR 手术盒配件

Driver Separator

• Use when the driver is wedged with the implant. Insert the driver separator into the opening on the driver, and lever the driver off the implant.
